FEATURES AND HIGHLIGHTS：
Specifications：
|
Fix Ports |
|
|
Fixed port |
24x10/100/1000 Base-T |
|
Power interface |
AC interface |
|
LED Indicators |
P, link/active |
|
Cable Type & Transmission Distance |
|
|
Twisted-pair |
0-100m |
|
Network Topology |
|
|
Ring topology |
Not Support |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
Electrical Specifications |
|
|
Input voltage |
AC 100-240V 50/60Hz |
|
Total Power consumption |
<10W |
|
Layer 2 Switching |
|
|
Switching capacity |
48G |
|
Packet forwarding rate |
35.71Mpps |
|
MAC address table |
2K |
|
Buffer |
2M |
|
Forwarding delay |
<10us |
|
MDI/MDIX |
Support |
|
Jumbo frame |
Support 13K bytes |
|
Environment |
|
|
Operating temperature |
-10℃~+55℃ |
|
Storage temperature |
-40℃~+70℃ |
|
Relative humidity |
10%~90% (non-condensing) |
|
Thermal methods |
Fanless design, natural heat dissipation |
|
MTBF |
100,000 hours |
|
EMC & Ingress Protection |
|
|
Surge protection for Ethernet port |
Common mode 4KV; differential mode 2KV |
|
Surge protection for Power |
Common mode 6KV; differential mode 2KV |
|
Electrostatic discharge (ESD) |
8 kV contact discharge，15 kV air discharge |
|
Free fall |
0.5m |
|
Mechanical Dimensions |
|
|
Product size |
270*181*44mm（LxWxH） |
|
Installation Method |
Desktop |
|
Weight |
1.41KG |
|
Packing List |
|
|
Packing list |
Device, Inspection Certificate, User manual, Power cord |
|
Fix Ports |
|
|
Fixed port |
16x10/100/1000 Base-T |
|
Power interface |
AC100-240V triangle interface |
|
LED Indicators |
P, link/active |
|
Cable Type & Transmission Distance |
|
|
Twisted-pair |
0-100m/ 250m |
|
Network Topology |
|
|
Ring topology |
Not Support |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
Electrical Specifications |
|
|
Input voltage |
AC 100-240V 50/60Hz |
|
Total Power consumption |
<10W |
|
Layer 2 Switching |
|
|
Switching capacity |
32G |
|
Packet forwarding rate |
23.8Mpps |
|
MAC address table |
2K |
|
Buffer |
2M |
|
Forwarding delay |
<10us |
|
MDX/MIDX |
Support |
|
Jumbo frame |
Support 13K bytes |
|
Environment |
|
|
Operating temperature |
-10℃~+55℃ |
|
Storage temperature |
-40℃~+70℃ |
|
Relative humidity |
10%~90% (non-condensing) |
|
Thermal methods |
Fanless design, natural heat dissipation |
|
MTBF |
100,000 hours |
|
EMC & Ingress Protection |
|
|
Surge protection for Ethernet port |
Common mode 6KV; differential mode 4KV |
|
Surge protection for Power |
Common mode 6KV; differential mode 4KV |
|
ESD |
IEC 61000-4-2 Level 4 （8K/15K） |
|
Free fall |
0.5m |
|
Mechanical Dimensions |
|
|
Product size |
190*140*44mm（LxWxH） |
|
Installation Method |
Desktop |
|
Weight |
0.7KG |
|
Packing List |
|
|
Packing list |
Device, Inspection Certificate, User manual, Power cord |

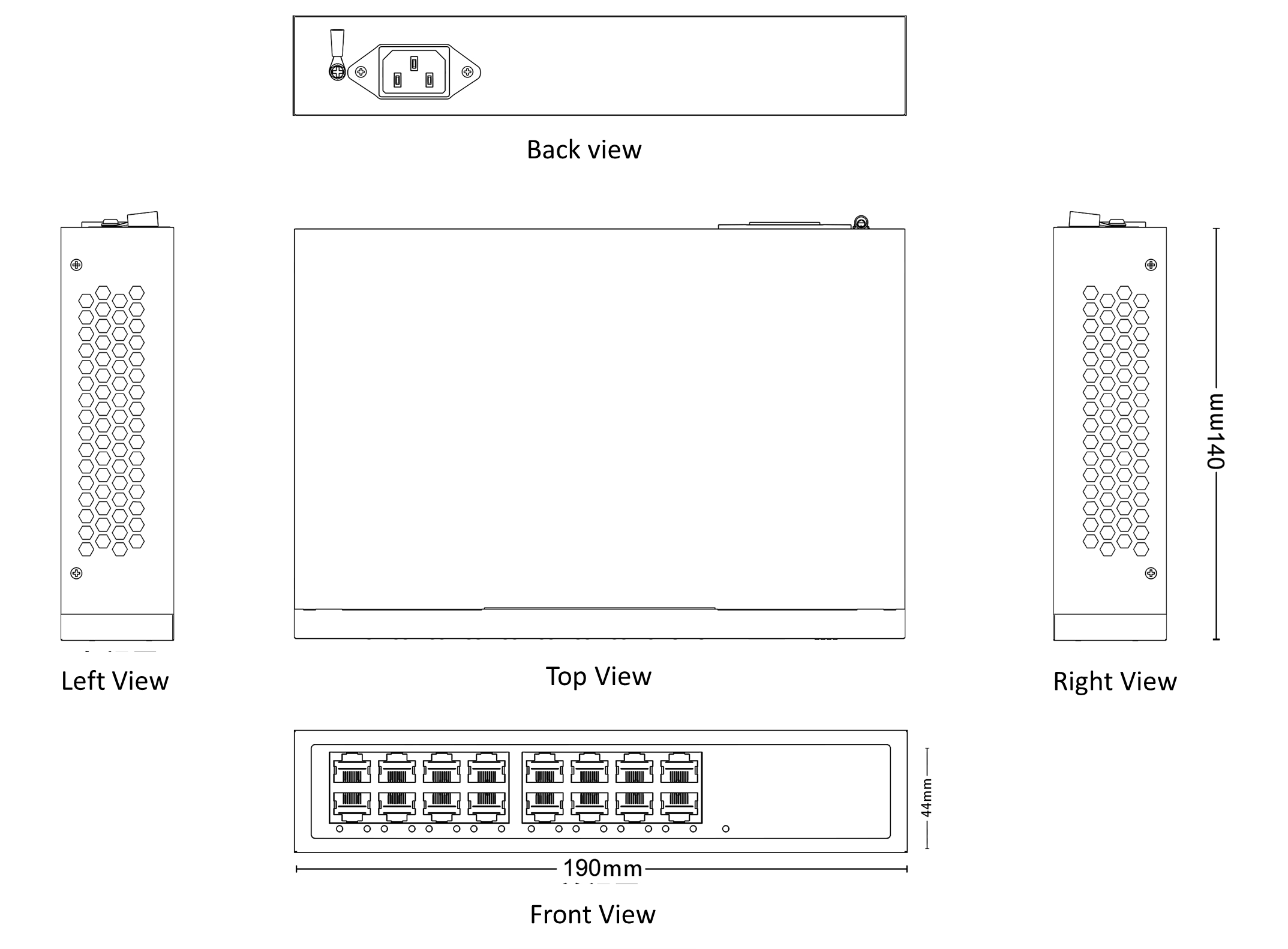

Dimensions：
