Fixed port

24x10/100/1000   Base-T

Power interface

AC interface

LED Indicators

P, link/active

Cable Type &   Transmission Distance

Twisted-pair

0-100m

Network Topology

Ring topology

Not Support

Star topology

Support

Bus topology

Support

Tree Topology

Support

Electrical Specifications

Input voltage

AC 100-240V   50/60Hz

Total Power consumption

<10W

Layer 2 Switching

Switching   capacity

48G

Packet forwarding   rate

35.71Mpps

MAC address   table

2K

Buffer

2M

Forwarding delay

<10us

MDI/MDIX

Support

Jumbo frame

Support 13K bytes

Environment

Operating   temperature

-10℃~+55℃

Storage   temperature

-40℃~+70℃

Relative   humidity

10%~90%   (non-condensing)

Thermal methods

Fanless   design, natural heat dissipation

MTBF

100,000 hours

EMC & Ingress Protection

Surge protection   for Ethernet port

Common mode 4KV;   differential mode 2KV

Surge protection   for Power

Common mode 6KV;   differential mode 2KV

Electrostatic discharge (ESD)

8 kV contact discharge，15 kV air discharge

Free fall

0.5m

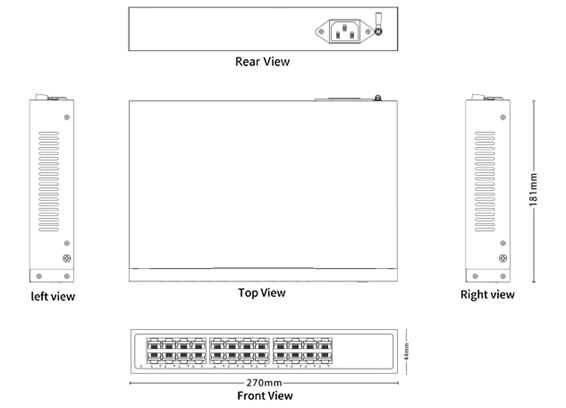

Mechanical Dimensions

Product size

270*181*44mm（LxWxH）

Installation   Method

Desktop

Weight

1.41KG

Packing List

Packing list

Device,   Inspection Certificate, User manual, Power cord
