The Outdoor CPE is designed to solutions for video surveillance transmission and wireless broadband access. It features with a high Gain directional antenna to provide an efficient way to pick up and maintain a stable long-range connection. Get rid of the transmission distance limitation and disadvantages of wired cables.

FEATURES AND HIGHTLIGHTS：

High Gain antenna & Long distance transmission

● UBG3102-300: 8dBi Gain 2*2MIMO antenna, up to 1.5km transmission range

● UBG3102-900: 12dBi Gain 2*2MIMO antenna, up to 2km transmission range

● UBG3102-900H: 14dBi Gain 2*2MIMO antenna, up to 4km transmission range

● UBG3302-900H: 15dBi Gain 2*2MIMO antenna, up to 6km transmission range

● UBG3305-900H: 14dBi Gain 2*2MIMO antenna, up to 5km transmission range

Professional Outdoor Design

● Working temperature:-30~55°C

● IP65

● 6kV ESD protection

Easy-to-use

● One-Key to pair

● WEB management

Specifications：

Items	UBG3305-900H	UBG3302-900H
Hardware Specifications

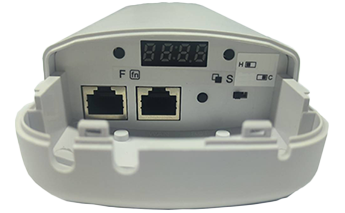

Ethernet Port	110/100/1000Base-T PoE RJ-45 WAN (Auto-MDI/MDI-X) 110/100/1000Base-T RJ-45 LAN(Auto-MDI/MDI-X)	110/100/1000Base-T PoE RJ-45 WAN (Auto-MDI/MDI-X) 110/100/1000Base-T RJ-45 LAN(Auto-MDI/MDI-X)
Power Method	PoE: 24V, 0.5A	PoE: 48V, 0.5A DC: 12V, 1.5A
Frequency Range	5.150GHz ~ 5.850GHz	5.150GHz ~ 5.850GHz
Compliant Standards	IEEE 802.11a/n/ac	IEEE 802.11a/n/ac
Antenna Gain	14dBi	15dBi
Maximum Wireless Rate	867Mbps	867Mbps
Flash	16MB	8MB
RAM	128MB	128MB
LED Indicator	1Power supply indicator 1Wi-Fi state indicator 1WAN port state indicator 1LAN port state indicator 4*Signal strength indicator	1System working indicator 1Wi-Fi state indicator 1WAN port state indicator 1LAN port state indicator 4*Signal strength indicator
Init Button	Short press to pair Long press >10s to initialize the system	Long press >10s to initialize the system
Cable	Cat5 or better
Dimensions (LWH)	262mm88mm58mm	260mm85mm45mm
Power Consumption	≤10W	≤15W
Reliability
ESD	6kV
Surge	2kV
Protection	IP65
Operating	-30°C~55°C, 5%~95% (Non-condensation)
Storage	-40°C~70°C, 5%~95% (Non-condensation)
Software Architecture
Operating mode	AP mode, Repeater mode
Wi-Fi	SSID number: 4 Support SSID hidden Support Wireless Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK Support MAC address filter Support Wi-Fi Schedule Support wireless client isolation Support transmission power setting Support wireless access number control
Network	Support VLAN Support DHCP server
System Management	Support system settings backup & restore Support system reboot & schedule reboot Support web upgrading Support history record, journal management

TX POWER LIST

Items	UBG3302-900H
5G Wireless Power	802.11a	54M	21±2dBm	6M	25±2dBm
	802.11n HT20	MCS7	21±2dBm	MCS0	25±2dBm
	802.11n HT40	MCS7	21±2dBm	MCS0	25±2dBm
	802.11AC VHT20	MCS9	20±2dBm	MCS0	25±2dBm
	802.11AC VHT40	MCS9	19±2dBm	MCS0	25±2dBm
	802.11AC VHT80	MCS9	19±2dBm	MCS0	25±2dBm
5G Receiver Sensitivity	802.11a	54M	-73dBm	6M	-90dBm
	802.11n HT20	MCS7	-71dBm	MCS0	-89dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-86dBm
	802.11AC VHT20	MCS9	-64dBm	MCS0	-87dBm
	802.11AC VHT40	MCS9	-59dBm	MCS0	-84dBm
	802.11AC VHT80	MCS9	-56dBm	MCS0	-81dBm
5G EVM	802.11a_54M: ≤-25 dB; 802.11n_MCS7: ≤-28 dB; 802.11AC_MCS9:≤-32dB

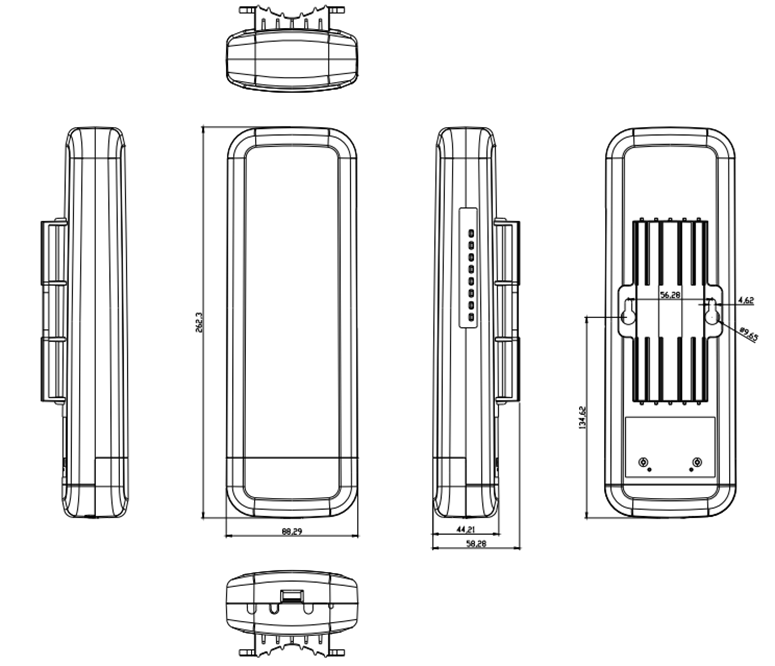

Dimensions：

Package：

Items	Quantity
Outdoor CPE	1pc
Power Adapter	1 pc
Power Cable	1 pc
Mounting Accessory	1 set
Ethernet Cable	1 pc
Quick Installation Guide	1 pc
