UBG3102-300_Shenzhen EP Smart Link TECH Co.,Ltd

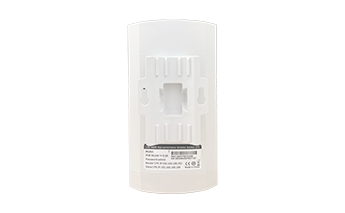

The Outdoor CPE is designed to solutions for video surveillance transmission and wireless broadband access. It features with a high Gain directional antenna to provide an efficient way to pick up and maintain a stable long-range connection. Get rid of the transmission distance limitation and disadvantages of wired cables.

FEATURES AND HIGHTLIGHTS：

High Gain antenna & Long distance transmission

● UBG3102-300: 8dBi Gain 2*2MIMO antenna, up to 1.5km transmission range

● UBG3102-900: 12dBi Gain 2*2MIMO antenna, up to 2km transmission range

● UBG3102-900H: 14dBi Gain 2*2MIMO antenna, up to 4km transmission range

● UBG3302-900H: 15dBi Gain 2*2MIMO antenna, up to 6km transmission range

Professional Outdoor Design

● Working temperature:-30~55°C

● IP65

● 6kV ESD protection

Easy-to-use

● One-Key to pair

● WEB management

Specifications：

Items	UBG3102-300	UBG3102-900
Hardware Specifications
Ethernet Port	110/100Base-T PoE RJ-45 WAN (Auto-MDI/MDI-X) 110/100Base-T RJ-45 LAN(Auto-MDI/MDI-X)	110/100Base-T PoE RJ-45 WAN (Auto-MDI/MDI-X) 110/100Base-T RJ-45 LAN(Auto-MDI/MDI-X)
Power Method	PoE: 24V, 0.5A	PoE: 24V, 0.5A
Frequency Range	2.412 GHz ~ 2.484GHz	5.150GHz ~ 5.850GHz
Compliant Standards	IEEE 802.11b/g/n	IEEE 802.11a/n/ac
Antenna Gain	8dBi	12dBi
Maximum Wireless Rate	300Mbps	867Mbps
Flash	8MB	8MB
RAM	64MB	64MB
LED Indicator	1System working indicator 1Wi-Fi state indicator 1WAN port state indicator 1LAN port state indicator	1System working indicator 1Wi-Fi state indicator 1WAN port state indicator 1LAN port state indicator
Init Button	Short press to pair Long press >10s to initialize the system	Long press >10s to initialize the system
Cable	Cat5 or better
Dimensions (LWH)	168mm88mm57.6mm	168mm88mm47.6mm
Power Consumption	≤5W	≤8W
Reliability
ESD	6kV
Surge	2kV
Protection	IP65
Operating	-30°C~55°C, 5%~95% (Non-condensation)
Storage	-40°C~70°C, 5%~95% (Non-condensation)
Software Architecture
Operating mode	AP mode, Repeater mode
Wi-Fi	SSID number: 4 Support SSID hidden Support Wireless Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK Support MAC address filter Support Wi-Fi Schedule Support wireless client isolation Support transmission power setting Support wireless access number control
Network	Support VLAN Support DHCP server
System Management	Support system settings backup & restore Support system reboot & schedule reboot Support web upgrading Support history record, journal management

TX POWER LIST

Items	UBG3102-300
2.4G Wireless Power	802.11b	11M	18±2dBm	1M	21±2dBm
	802.11g	54M	17±2dBm	6M	20±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	19±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	18±2dBm
2.4G Receiver Sensitivity	802.11b	11M	-85dBm	1M	-94dBm
	802.11g	54M	-72dBm	6M	-88dBm
	802.11n HT20	MCS7	-68dBm	MCS0	-86dBm
	802.11n HT40	MCS7	-66dBm	MCS0	-85dBm
2.4G EVM	802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28dB

Package：

Items	Quantity
Outdoor CPE	1pair
Power Adapter	2 pc
Power Cable	2 pc
Mounting Accessory	1 set
Ethernet Cable	2 pc
Quick Installation Guide	1 pc
