Specifications：
|
Item |
UOF7201GE |
|
Ethernet Ports |
|
|
Ethernet Ports |
Ethernet port:10/100/1000Mbps |
|
Transmission Distance |
0～100m |
|
Fiber Ports |
|
|
Fiber Port |
LC Port, SFP Optical Module, Single Fiber or Dual Fiber Optional |
|
Bandwidth |
1.25Gbps |
|
Transmission Distance |
Depend on SFP module performance |
|
Standards |
|
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab/z, 10/100/1000Base-T and 1000Base-X, IEEE 802.3 X. |
|
LED Indicator |
|
|
Power Indicator Light |
1 Red |
|
Network Indicator Light |
1 Green on RJ45 Socket |
|
Fiber Indicator Light |
3 Green (Link,SD,FED) |
|
Power Supply |
|
|
Power Supply |
12~24V DC |
|
Environment |
|
|
Surge Immunity |
6kV,Standard: IEC61000-4-5 |
|
ESD Protection |
Level 3,Standard:IEC61000-4-2 |
|
Operating Temperature |
-40℃~75℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
0~95% (Non-condensation) |
|
Physical Parameter |
|
|
Dimensions (W*D*H) |
103mm*82mm*25mm |
|
Net Weight |
160g |
|
Material |
Aluminum Alloy |

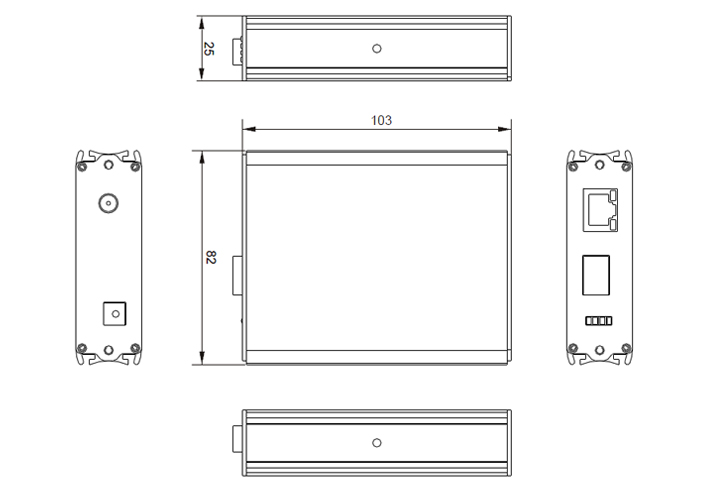

Dimensions：
Package：
|
Item |
Quantity |
|
Gigabit Ethernet Converter |
1 |
|
Power Adapter |
1 |
|
AC Power Cord |
1 |
|
Hanger |
2 |
|
User Manual |
1 |
