FEATURES AND HIGHLIGHTS：
Specifications：
|
Item |
Parameter |
|
|
Function |
Channel |
8/16 Channels |
|
Transmission Distance |
Please refer to table 1 and2 |
|
|
Power Consumption |
Total<192W(each port< 12W) |
|
|
Video Properties |
Video Connector |
8/16*BNC |
|
Cable Connector |
8/16*RJ45 |
|
|
Compatibility |
PAL,NTSC,SECAM HDCVI/AHD/HDTVI |
|
|
Signal Transmission Band |
0- 70 MHZ |
|
|
Interference Rejection |
>60dB |
|
|
Protection |
Surge |
2KV(different mode) 4KV(common mode) Per:IEC61000-4-5 |
|
ESD |
Contact Discharge:6KV Air Discharge:8KV IEC61000-4-2 |
|
|
Physical Properties |
Size(L×W×H) |
430mm×83mm×44.5mm |
|
Outer Shell Material |
Metal |
|
|
Color |
Black |
|
|
N.W. |
6kg |
|
|
Environmental |
Operating Temperature |
-10℃ - 45℃ |
|
Storage Temperature |
-40℃ - 85℃ |
|
|
Relative Humidity |
0%- 95% (Non- condensing） |
|

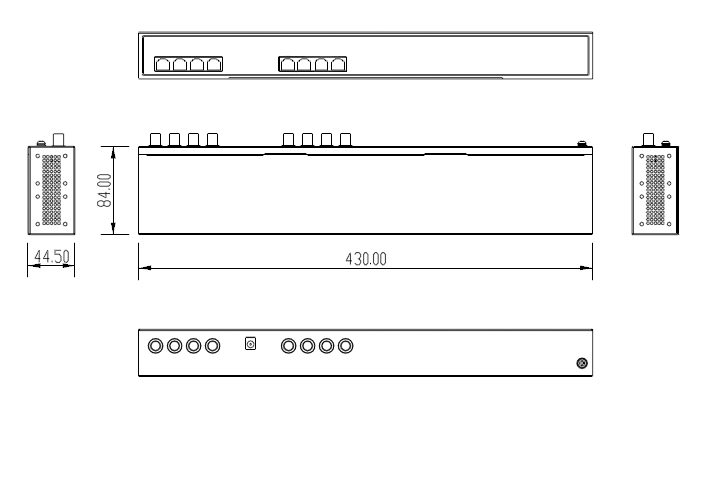

Dimensions：

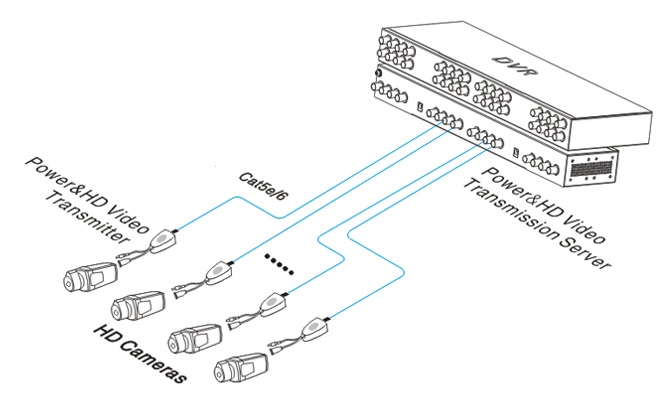

Applications：
Package：
|
Designation |
Quantity |
|
Power & HD video Transmission Server |
1 pc |
|
1ch Power & HD video Transceiver |
8 pc |
|
User Manual |
1 pc |
|
Power Adapter |
1 pc |
|
Accessory |
1 set |
