101PV-HD12

1ch Power & HD Video Transceiver...

Description

101PV-HD12

1ch Power & HD Video Transceiver

The product is a transceiver that can transmit CCTV video and power at the same time.The device conclude a transmitter and a receiver, uses cat 5/5e/6 twisted cable as transmission medium, It can real-time receive color video or mono PAL/NTSC/SECAM video or HDCVI, AHD, HDTVI HD video, also transmit DC power to 300m, supply 12V DC power to camera, simplified project wiring. In practical project ,it features long transmission distance, good transmission effect, super anti-interference.Widely used in security, teaching these complex environment.

FEATURES AND HIGHLIGHTS：

ADVANTAGES

● Power: supply 12V DC power to camera,simplified project wiring

● Main function: real-time transmit color video or mono PAL/NTSC/SECAM and HDCVI, AHD, HDTVI HD video, also transmit DC power to 300m

● Safety: anti-interference, super surge protection, anti-static, transient protection

● Outer design: with extend coaxial cable, easy to instal DVR, RJ45, BNC, DC

● Installation: adopt RJ45, project is more easy

● Transmission distance as below:

HDTVI

- 720P/1080P: 200m

- 4MP: 230m

- 8MP: 180m

HDCVI

- 720P: 300m

- 1080P/8MP: 200m

- 4MP: 250m

AHD

- 1080P: 350m

- 4MP: 250m

- 5MP: 180m

- 8MP: 300m

Analog video

- 600m

Specifications：

Model	101PV-HD12
Transmission Signal	1 channel
Transmission Distance	HDTVI-720P/1080P: 200m;4MP: 230m; 8MP: 180m;
	HDCVI-720P: 300m ; 1080P/8MP: 200m; 4MP: 250m;
	AHD: -1080P: 350m; 4MP: 250m; 5MP: 180m; 8MP: 300m;
	Analog video: 600m;
Coaxial Video Port	Male BNC
Twisted-pair Video Port	1*RJ45 port
Video Compatibility	HDCVI/HDTVI/AHD/Analog,
Video Compatibility	PAL/NTSC/SECAM Video
Bandwidth	0～50MHz
Anti-interference	>60dB
Coaxial Port Protection	2KV(common-mode)
Coaxial Port Protection	Per: IEC61000-4-5
Twisted pair video port protection	2KV(different-mode)4KV(common-mode)
ESD	1a Contact discharge level 3
	1b Air discharge level 3
	Per: IEC61000-4-2
Operating Temperature	0～55℃
Storage Temperature	-20℃~70℃
Humidity	0～95% Non-condensing
Size	79mm×36mm×22mm（with connector )
Shell	ABS proiect plastic
Weight	42g

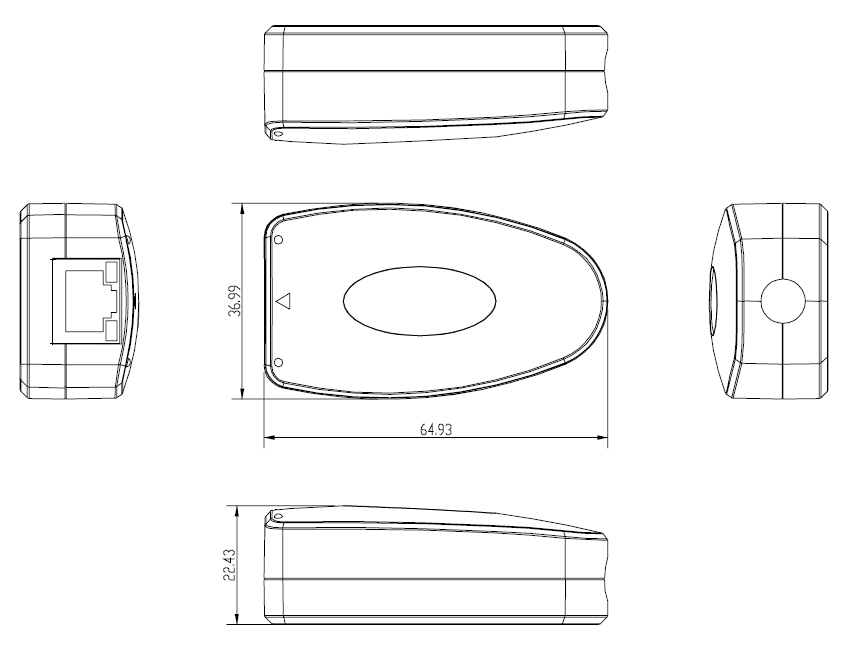

Dimensions：

101P-HD6 case.png

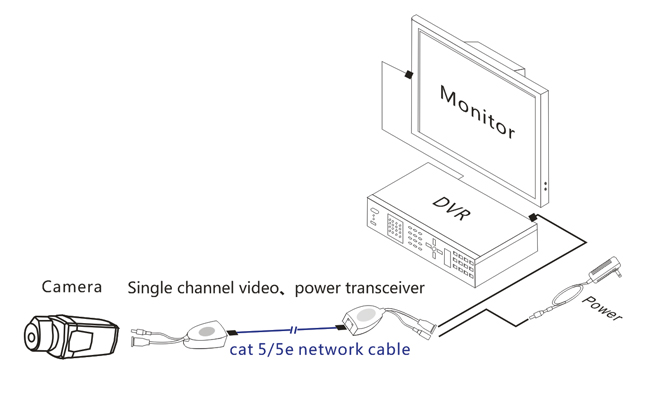

Applications：

101P-HD6 case.png

Package：

Designation	Quantity
101PV-HD12	2
User Manual	1
