101P-HD6

Passive Analog HD-Video Transceiver...

Description

101P-HD6

Passive Analog HD-Video Transceiver

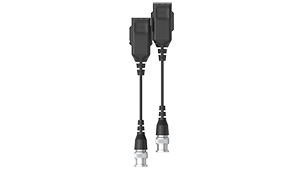

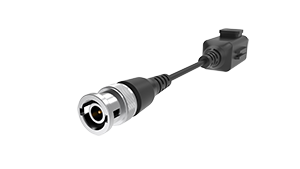

The passive video transceiver allows the transmission of real-time video over UTP wires. Equipped with splicing and push button design in compact size, it ensures the better management and simple installation. Meanwhile, compatible with HDCVI/ HDTVI/ AHD/ Analog, it is very suitable for video surveillance, such as office building, community, school and hospital etc.

FEATURES AND HIGHLIGHTS：

ADVANTAGES

● New design, support splicing, push-button.

● Plug-and-play; Real-time and stable HDCVI/HDTVI/AHD/Analog transmission result.

● 500m matches the passive transceiver; 650m matches active transceiver;

● Excellent anti-interference，surge protection, ESD and lighting protection capability;

● ABS (Acrylonitrile-Butadiene-Styrene) shell; built-in extended coaxial cable, convenient for intensive engineering projects;

● Bayonet Nut Connector (BNC); press-fitting terminal.

101P-HD6 detail.png

Specifications：

Model	101P-HD6
Video Port	1 channel
Recommend Transmission Distance (with passive product)	HDCVI-720P:400m;1080P:250m;
	4MP:250m;8MP:200m
	HDTVI-720P:250m;1080P:250m;
	4MP:200m;8MP:160m
	AHD-720P: 300m; 1080P:300m
	4MP: 270m; 8MP:250m
	Analog Video:500m;
Coaxial Video Port	Male BNC
Twisted-pair Video Port	2-channel pushing terminal
Video Compatibility	HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video
Bandwidth	0～75MHz
Surge Immunity	2KV Per: IEC61000-4-5
ESD Immunity	Level 3,1a Contact Discharge,
ESD Immunity	Level 3,1b Air Discharge
Operating Temperature	-10～55℃
Storage Temperature	-40℃~85℃
Humidity（Non-condensing）	0～95%
Out Shell	ABS
Weight	20g

Applications：

101P-HD6 case.png

Package：

Designation	Quantity
101P-HD6	2

Previous：101P-HD
Next：101PV-HD12
