101P-HD

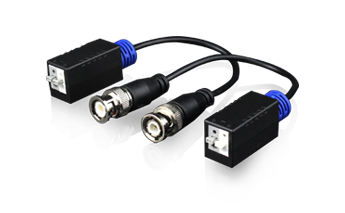

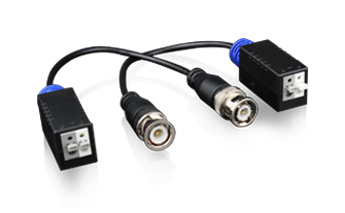

1CH Passive HD Video Balun_HD

Transmission distance up to 500 meters with passive transmitter; Transmission distance up to 650 meters with active transmitter. Plug-and-play. Real-time and stable: Strong surge protection, ESD and lighting protection.

FEATURES AND HIGHLIGHTS：

ADVANTAGES

● Passive, no power required;

● Plug-and-play; Real-time and stable HDCVI/HDTVI/AHD/Analog transmission result;

● 500m matches the passive transceiver; 650m matches active transceiver;

● Excellent anti-interference，surge protection, ESD and lighting protection capability;

● ABS (Acrylonitrile-Butadiene-Styrene) shell; built-in extended coaxial cable, convenient for intensive engineering projects;

● Bayonet Nut Connector (BNC); press-fitting terminal.

Specifications：

Model	101P-HD
Video Port	1 channel
Maximum Transmission Distance (with passive product)	HDCVI-720P:370m;1080P:200m;
	400W(4MP):350m;800W(8MP):150m
	HDTVI-720P:200m;1080P:200m;
	300W(3MP):250m;
	AHD-720P/960P: 330m; 1080P:300m
	400W(4MP): 250m;500W(5MP): 200m
	Analog Video:500m;
Coaxial Video Port	Male BNC Port
Twisted-pair Video Port	2-channel screw push terminal
Video Compatibility	HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video
Bandwidth	0～75MHz
Anti-interference	>60dB
Coaxial Port Protection	2KV Per: IEC61000-4-5
Twisted-pair Port Protection	2KV(different mode) 4KV(common mode)
Twisted-pair Port Protection	Per: IEC61000-4-5
ESD	Level 3,1a Contact Discharge,
ESD	Level 3,1b Air Discharge
Operating Temperature	-10～55℃
Storage Temperature	-20℃~70℃
Humidity (Non-condensing)	0～95%

Applications：

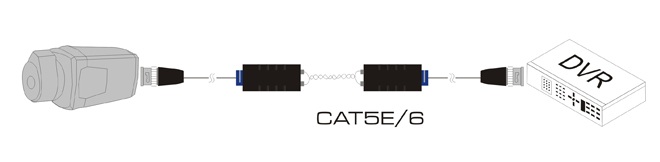

101P-HD case.png

Package：

Designation	Quantity
101P-HD	2
User Manual	1
