FEATURES AND HIGHLIGHTS：
Specifications：
|
Model |
104P-HD |
|
|
Function |
Transmission Channel |
4 channel |
|
Video Port |
4 channel |
|
|
Recommendation Distance |
HDCVI-720P:370m;HDCVI-1080P:100m; |
|
|
HDTVI-720P/1080P: 200m; |
||
|
AHD-L/M-720P/960P: 330m; AHD-H-1080P:330m |
||
|
Analog Video: 500m |
||
|
Video Transmission Performance and Connector |
Coaxial Video Port |
Female BNC Connector |
|
Cable Video Connector |
Female RJ45 Connector |
|
|
8 channel screw push terminal |
||
|
Compatible Video Format |
HDCVI HDTVI AHD CVBS |
|
|
Signal Transmission Width |
0～75MHz |
|
|
Anti-interference |
>60dB |
|
|
Protection |
Coaxial Port Protection |
2KV Per: IEC61000-4-5 |
|
Cable Communication |
2KV(different mode) |
|
|
ESD |
1a contact discharge level 3 |
|
|
1b air discharge level 3 |
||
|
per: IEC61000-4-2 |
||
|
Operation Environment |
Operating Temperature |
-0～55℃ |
|
Storage Temperature |
-40℃~85℃ |
|
|
Humidity（Non-condensing） |
0～95% |
|
|
Mechanical |
Dimension(L*W*H) |
85mm x 82mm x 25m（Include connector length) |
|
Out Shell |
Aluminum |
|
|
Color |
Black |
|
|
Weight |
154g |
|

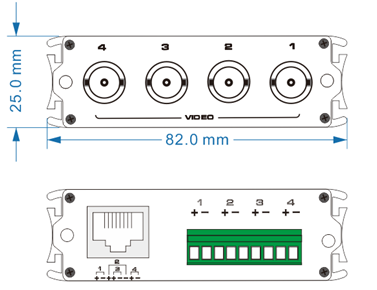

Dimensions：

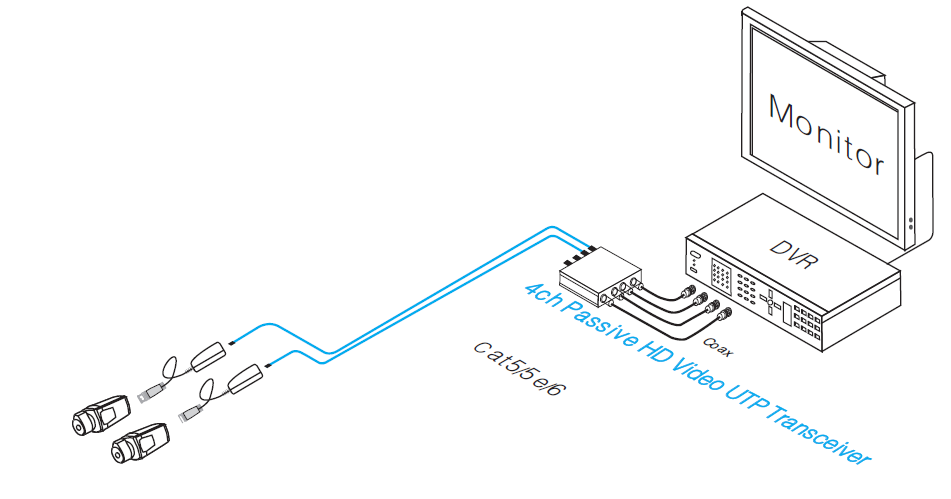

Applications：
Package：
|
Designation |
Quantity |
|
104P-HD |
1 |
|
Accessories (Ears,screws,pads) |
1 |
|
User Manual |
1 |
