Description

116P-HD

16CH Passive HD Video Transceiver

The 16ch passive HD (non-amplified) video transceiver allows transmission of real-time and high-performance color or monochrome (B/W) CCTV video or o r HDCVI/AHD/HDTVI HD video over cable. The device is 1U rack-mountable, perfect for multi-point surveillance.

FEATURES AND HIGHLIGHTS：

ADVANTAGES

● Passive,no need of power supply.

● HDCVI HDTVI AHD CVBS 4 in 1 Compatible design; Real-time transmission, no delay.

● Recommendation transmission distance as below:

1. HDCVI1080p: 100m ; HDCVI 720P: 370m( passive to passive).

2. HDTVI 720p/1080p: 200m ( passive to passive).

3. AHD-L/M 720P/960P: 330m; AHD-H 1080P: 330m(passive to passive).

4. Analog video: 500m ( passive to passive).

● RJ-45 or green terminal block to be chosen to connect cable.

● Compact ID design;1U(19')rack mountable.

● Plug and play,simple installation.

● Super surge protection&interference rejection.

Specifications：

Model		116P-HD
Function	Transmission Channel	16 channel
	Recommendation distance	HDCVI-720P:370m;HDCVI-1080P:100m;
		HDTVI-720P/1080P: 200m;
		AHD-L/M-720P/960P: 330m; AHD-H-1080P:330m
		Analog Video: 500m
Cable Connector	Video Connector	BNC-F
	Cable Connector	8 pin green terminal block,RJ-45
	Compatible With	PAL、NTSC、SECAM video
	Compatible With	HDCVI/AHD/HDTVI HD video
	Signal Transmission Band	0～75MHz
	Interference Rejection	>60db
	Video Connector Protection	2KV (common mode) Per: IEC61000-4-5
	Cable Connector Protection	2KV (different mode) Per:IEC61000-4-5
Protection	ESD Protection	Contact Discharge:6000V Air Discharge:8000V Per: IEC61000-4-2
Operation Environment	Working Temperature	0℃~50℃
	Storage Temperature	-40℃~85℃
	Humidity（Non-condensing）	0～95%
Mechanical	Dimension(LWH)	430mm x 100mm x 44.5m
	Out Shell	Iron Meta
	Color	Black
	Weight	1.18Kg

Dimensions：

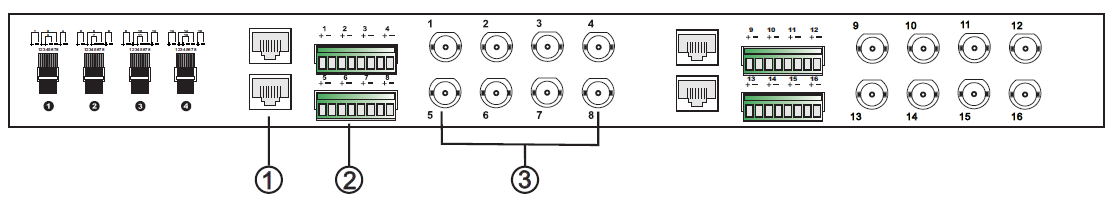

116P-HD size.png

Applications：

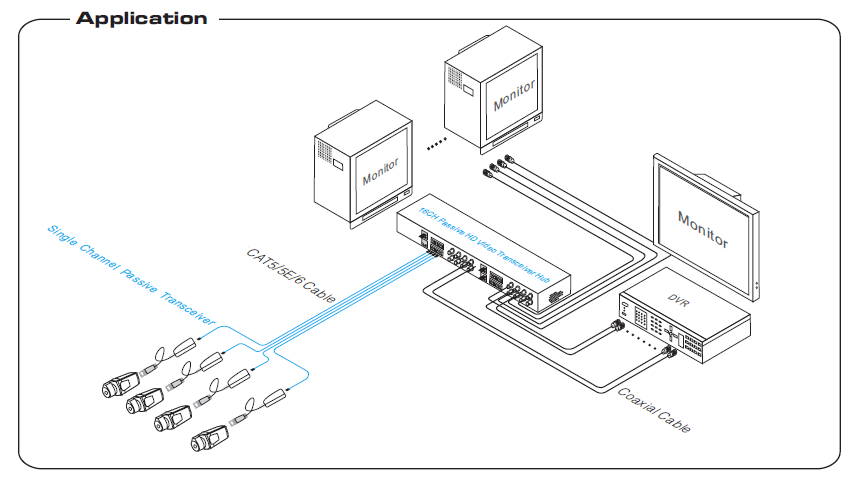

116P-HD case.png

Package：

Designation	Quantity
116P-HD	1
Accessories	1
User Manual	1
