7201GE-PD25

PoE Splitter...

Description

7201GE-PD25

PoE Splitter

30W PoE.png

7201GE-PD25 PoE Splitter consisting of one PoE Input Port, one Ethernet port, and one DC Power Output port. PoE (Power over Ethernet) technology allows the existing Ethernet infrastructure to transmit electrical power, along with data, to remote IP endpoints over the Ethernet cables. It fully complies with IEEE 802.3af/at standard, and can work with all IEEE 802.3af/at PoE compliant PSE (Power Sourcing Equipment) or PoE Supplier Adapter. It supports Mode A (endspan) and Mode B (mid-span). The maximum power available at PD is up to 25W and it delivers power up to 100 meters. It features optional 12V DC/24V DC power supply, Gigabit speed support, 6kV Surge Protection, 1.5kV circuit isolation, -40℃ ~75℃ Operating Temperature, Industrial chip, and aluminum shell.

FEATURES AND HIGHTLIGHTS：

● DC 12V/24V switch output

● Compatible with mode A(End-span) and mode B(Mid-span)

● Conversion efficiency ≥90% , reduce the heat

● Standard: accord with IEEE802.3af/at, IEEE802.3 10Base-T/100Base-TX/IEEE802.3ab 1000Base-T

● Reliable connection: Network connectors adopt high-power PoE flat-pin RJ45 ports with 30u gold-plated

● Power output connectors support DC terminal and green terminal two styles

● Wide-temperature design: -40℃~75℃ wide range, the aluminum shell is good for heat dissipation

● Structure: small volume, easy installation, accord with MIT rack and wall-mounted installation

Specifications：

Item		Description
Interface	PoE In	1×RJ45
	Data Out	1×RJ45
	DC Out	1×green terminal 1×DC connector(*alternative）
	Grounding	Grounding Terminal
PoE Power Supply	Protocol	IEEE803.2af/at
	Power Supply	Support Mode A (End-Span) and Mode B (Mid-Span)
	Power Requirements	PoE36V~60V 30W(max)
	Power Consumption	≤25.4W
	Output power	DC 12V/24V by DIP switch control
	Output Ripple	<5%
Ethernet Port Parameter	Transmission Distance	100m
	Transmission Speed	10/100/1000Mbps
	Transmission Medium	Cat5/5e/6 Standard Network Cable
Status Indicator	Input PoE Power	1 (PoE IN Port RJ45 Yellow Light)
Status Indicator	Output DC Power	1 (Ethernet Port RJ45 Yellow Light)
Protection Level	ESD	3 level, Standard:IEC61000-4-2
	Surge	PoE Power:3KV(Differential Mode),6KV(Common
		Mode)1.2/50us, 8/20us
		Ethernet:3KV(Differential Mode), 6KV(Common
		Mode)10/7000us
Environmental	Operating Temperature	-40℃~75℃
	Storage Temperature	-40℃~85℃
	Humidity (Non-condensing)	0~95%
Mechanics	Dimension (L×W×H)	82mm×63mm×25mm
	Material	Aluminum
	Color	Black
	Weight	180g

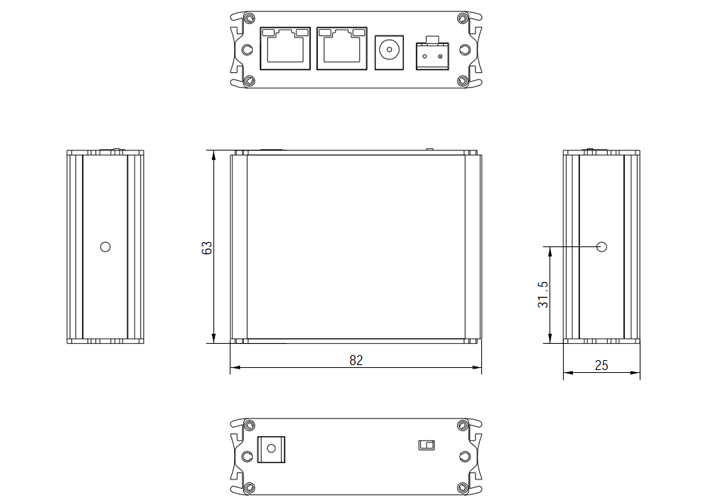

Dimensions：

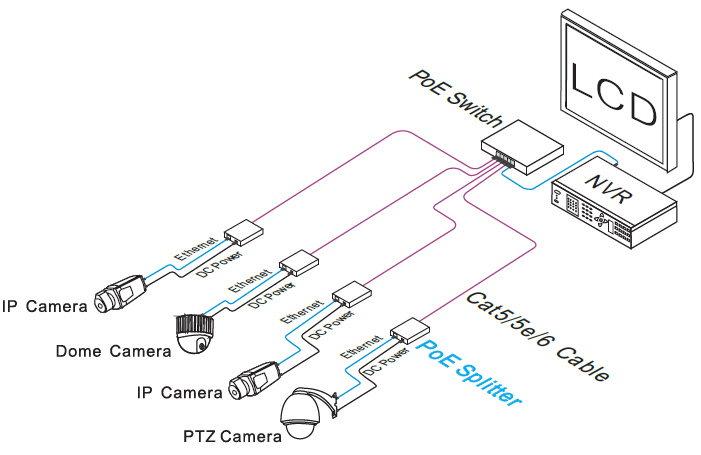

Applications

Package：

Designation	Quantity
PoE Splitter	1pc
MIT Hanger	2pcs
DC Plug Cable	2pcs
RJ45 Cable	1pc
User Manual	1pc
