FEATURES AND HIGHTLIGHTS：
Specifications：
|
Items |
PR6303-PSC-PDD |
|
Ethernet Ports |
|
|
PoE Input Port |
1*10/100/1000Base-TX RJ-45 |
|
PoE Output Port |
2*10/100/1000Base-TX RJ-45 |
|
PoE |
|
|
PoE Standard |
IEEE 802.3af/at/bt |
|
PoE Power Supply Type |
End-span, Mid-span |
|
PoE Pin Assignment |
1/2(-), 3/6(+), 4/5 (+), 7/8 (-) |
|
Input Voltage |
50~57V DC, max 90W |
|
PoE Output Power |
65W(max) |
|
Single Port PoE Output Power |
60W(max) |
|
Switch Property |
|
|
Standards |
IEEE 802.3,IEEE 802.3u, IEEE 802.3ab |
|
Forwarding Modes |
Store and Forward |
|
Transmission Distance |
Extend 100m by 1pcs, max. 400m when 3pcs in cascade |
|
MAC Table |
2k |
|
Switching Capacity |
6Gbps |
|
Packet Forwarding Rate |
4.46Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10kB |
|
Environment |
|
|
Surge Immunity |
6kV, Standard: IEC61000-4-5 |
|
ESD Protection |
6kV Contact Discharge, 8kV Air Discharge, Standard: IEC61000-4-2 |
|
Enclosure |
IP67-rated and IK10 aluminum case |
|
Operating Temperature |
-20℃~75℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
0~95% (No condensation) |
|
Physical Parameters |
|
|
Dimensions (W*D*H) |
195mm*75mm*42mm |
|
Net Weight |
519g±10g |
|
Material |
Metal Shell |
|
Installation |
Wall-mounted |
|
Certifications |
|
|
Certifications |
CE, FCC |

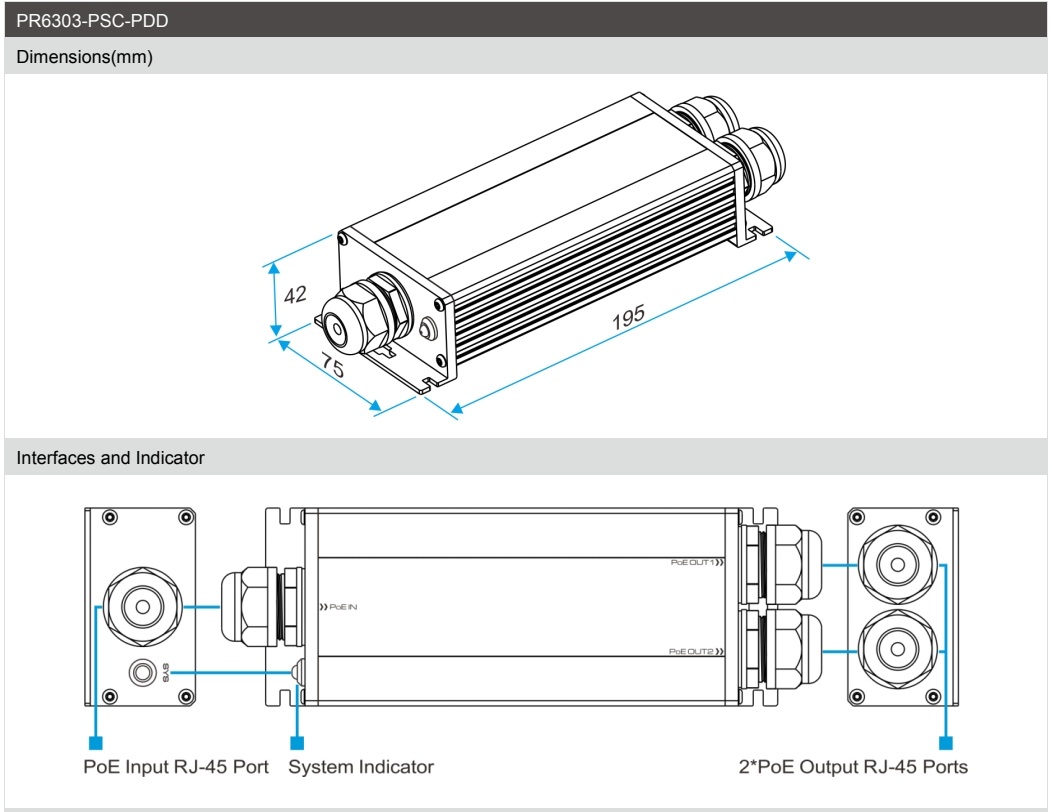

Dimensions：
Package：
|
Item |
Quantity |
|
Repeater |
1 pc |
|
Mounting Accessory |
1 set |
|
Quick Installation Guide |
1 pc |
