FEATURES AND HIGHLIGHTS：
Specifications：
|
Model |
Description |
|
Power Supply |
PoE Power Supply,POE input (IEEE 802.3af/at),DC48V-57V, 30W max. |
|
PoE Input Port |
10/100Base-Tx RJ45,IEEE 802.3af/at PD port, 30W max |
|
PoE Output Port |
2*10/100Base-Tx RJ45,IEEE 802.3af/at PSE port.25W max(including DC out) |
|
PoE Standard |
IEEE802.3af / at Power over Ethernet / PSE |
|
IEEE802.3af / at Power over Ethernet / PD |
|
|
PoE Power Method |
End-span |
|
Standard and Protocols |
IEEE802.3,IEEE 802.3u,IEEE 802.3ab |
|
Transmission Distance |
100m |
|
About the relationship between distance and power, |
|
|
Please refer to table 1 |
|
|
LED Indicator |
PoE IN Port and PoE OUT Port: RJ45 yellow light indicates PoE |
|
status; green light indicates data exchange |
|
|
ESD Immunity |
1a Contact Discharge Level 3 |
|
1b Air Discharge Level 3 |
|
|
Per: IEC61000-4-2 |
|
|
Communication Port Anti-thunder Protection |
6KV Per: IEC61000-4-5 |
|
Operating Temperature |
-40℃~75℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Humidity(Non-condensing) |
0-95% |
|
Dimension（L×W×H） |
63.2mm×82mm×25mm |
|
Weight |
154g |
|
Material |
Aluminum |
|
Color |
Black |

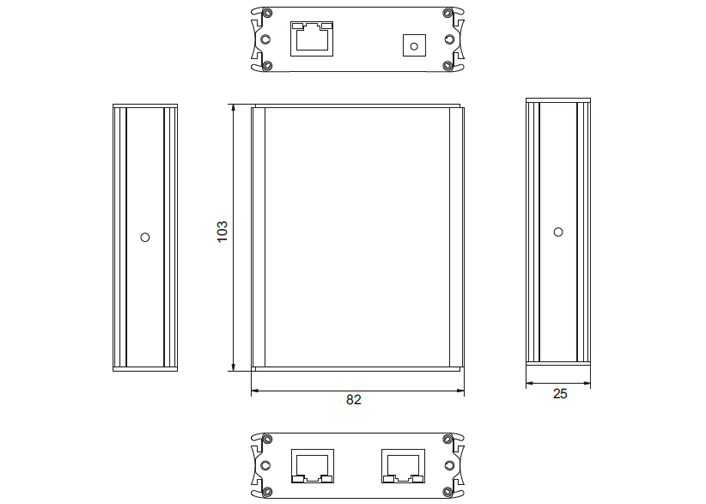

Dimensions：

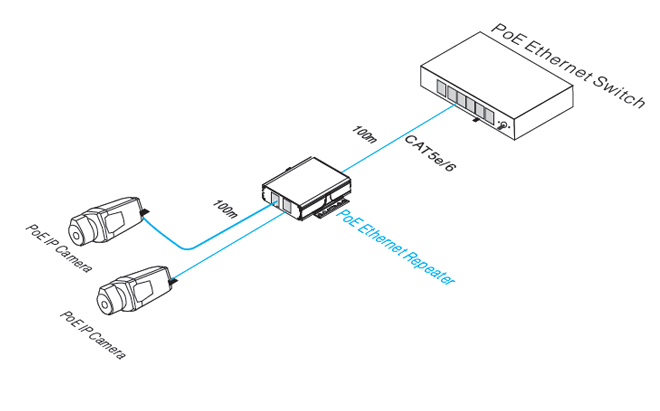

Applications：
Package：
|
Designation |
Quantity |
|
PoE Ethernet Repeater |
1 |
|
MIT Hanger |
2 |
|
User Manual |
1 |
