Item

Description

Power

Power Supply

PoE power or DC power

Voltage Range

DC 48V～57V

Power Consumption

＜2W

Ethernet Port
Parameters

Ethernet Ports

EPOC: 0--100Mbps Ethernet: 10/100Mbps
Transmission bandwidth changes with transmission distance,
please refer to table 1

Transmission Distance

EPOC Coaxial Cable: 0-500m(Max)
EPOC Network Cable: 0-400m(Max)

Transmission Medium

75-5 above Coaxial Cable and Cat5e/6

PoE Standards

Support IEEE802.3af, IEEE802.3at

PoE Power Method

Support End-span and Mid-span

Ethernet
Features

Ethernet Standards

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX

Ethernet Delay

＜1ms

Status

LED Indicators

PoE IN/OUT Port:
One indicates PoE power supply or DC power status(RJ45
yellow), one indicates Ethernet signal transmission(RJ45 green);
EPOC Port: indicates signal transmission(RJ45 yellow/green)

Protection
Level

ESD Protection

1a Contact Discharge level 3
1b Air Discharge level 3
Per: IEC61000-4-2

Surge Immunity
(Communication Ports)

Per: IEC61000-4-5 level 3

Operation
Environment

Working Temperature

IPC:-40℃~70℃ , SV:0℃~55℃

Storage Temperature

-40℃~85℃

Humidity(No-Condensing)

0~95%

Mechanical

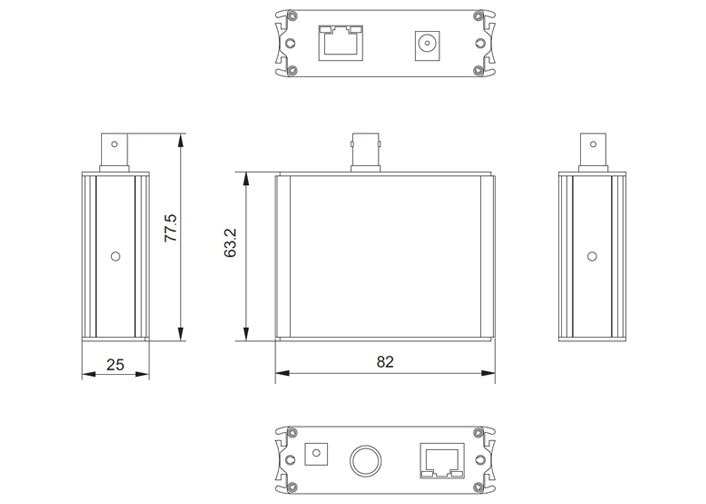

Dimension(L×W×H)

63.2mm×82mm×25mm

Material

Aluminum

Color

Black

Weight

IPC:153g; SV:154g
