1201XP-HD

HD-Video Anti-Interference Device...

Description

1201XP-HD

HD-Video Anti-Interference Device

HD-Video Anti-Interference Device is a passive high-efficient and high-reliable ground loop isolator for HDCVI/HDTVI/AHD/Analog video signal over coaxial cable. Its magnetic isolation technology adoption can effectively solve the interference issues caused by different ground potential during the transmission, which improve the video anti-interference capability and effectively eliminate the splitting and scrolling pictures. The device embedded lightning protection system improves the stability. It is widely used in various complicated security surveillance projects.

FEATURES AND HIGHLIGHTS：

ADVANTAGES

● Passive, no power required

● Eliminate Video distortion caused by ground loops ciruit

● Eliminate issues as image tearing, cross-talk, rolling and so on

● Fully compatible with HDCVI, HDTVI, AHD, Analog Video signals

● Built-in 800v insulated voltage

● Excellent anti-interference capability, superior lighting-protection, ESD and EFT capability

● Support unibody, with small volume

Specifications：

Items		Description
Function Properties	Insertion Loss	0.5dB
	Frequency Response	5Hz-70MHz
	Input Impedance	75Ω
	Output Impedance	75Ω
	Isolation Voltage	800V(Minimum）
	Isolation Resistance	100M Ohms
Protection	Surge	Level3 Per IEC61000-4-5
Protection	ESD	Contact Discharge: 6KV Air Discharge: 8KV Per IEC61000-4-2
Environment	Operation Temperature	-10℃~55℃
	Storage Temperature	-40℃~85℃
	Humidity (Non-condensing)	0~95%
Mechanical	Dimensions（L×W×H）	41mmX24.5mmX21.6mm
	Material	ABS Plastics
	Color	Black
	Weight	51g

Dimensions：

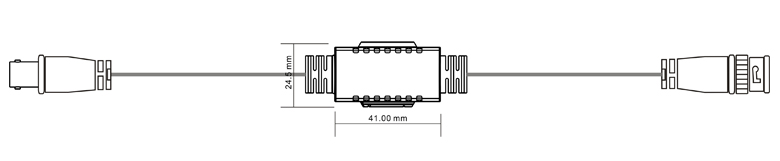

1201XP-HD size.png

Applications：

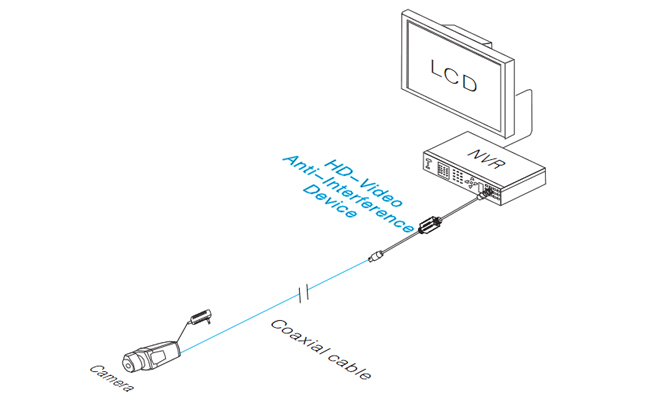

1201XP-HD cases

Package：

Designation	Quantity
HD-Video Anti-Interference Device	1pcs
User Manual	1pcs
