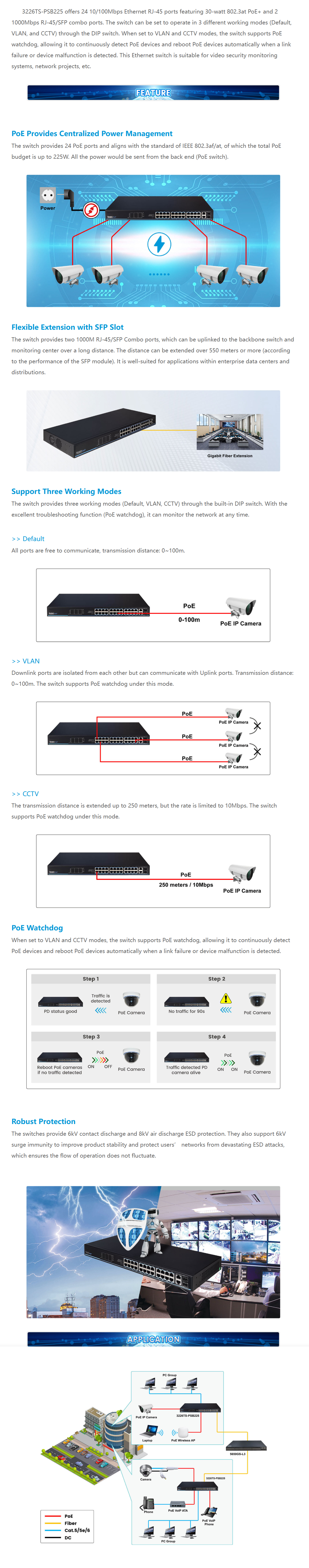

FEATURES AND HIGHLIGHTS：
Specifications：
Item | 3226TS-PSB225 |
Hardware Specifications | |
Downlink Ports | 24*10/100BASE-T PoE+ RJ-45(Auto-MDI/MDI-X) |
Uplink Ports | 2*1000M RJ-45/SFP Combo |
LED Indicators | 1*PWR, power indicator |
28*Link, port indicators | |
24*PoE, PoE indicators | |
DIP Switch | Default: all ports are free to communicate, transmission distance: 0~100m. |
VLAN: downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog. | |
CCTV: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog. | |
Input Voltage | 100~240V AC |
Power Consumption | ≤237W (Full load including PoE) |
Dimensions (W*D*H) | 441*180*44mm |
Net Weight | 2.31kg |
Installation | Rack/Desktop/Wall mounted |
Material | Metal shell |
Color | Black |
Switch Property | |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
Forwarding Modes | Store and Forward |
MAC Table | 8k |
Switching Capacity | 8.8Gbps/non-blocking |
Packet Forwarding Rate | 6.5472Mpps |
Buffer | 4Mb |
Power Supply | |
PoE Standard | IEEE 802.3af/at |
PoE Power Supply Type | End-span |
PoE Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Budget | 30W max for each port, 225W max for whole switch |
Reliability | |
ESD | IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV |
Surge | IEC61000-4-5, line to earth: 6kV |
Operating | -10°C~50°C, 5%~95% (Non-condensation) |
Storage | -40°C~75°C, 5%~95% (Non-condensation) |
Dimensions：
Package：
Item | Quantity |
Switch | 1 pc |
Power Cable | 1 pc |
Mounting Accessory | 1 set |
Quick Installation Guide | 1 pc |
