Item

7208GE-POE

Physical Port

Downlink Ports

8*10/100/1000Base-T PoE

Uplink Ports

2*1000 Base-X SFP Slots

Alarm Output

One channel relay alarm output, 1A@DC 9V, 2 cores, 5.08mm terminal

DIP Switch

1. Enable / Disable fast ring & PoE watchdog, with self-healing time less than 20ms.
2. Enable / Disable broadcast storm prevention.

Switching Performance

Standards

IEEE 802.3 , IEEE 802.3u, IEEE 802.3ab, IEEE 802.3Z, IEEE 802.3X, IEEE 802.1D, IEEE 802.1af/at

Switching Capacity

20Gbps

Packet Forwarding Rate

14.9Mpps

Packet Buffer

2Mbit

MAC Table

16k

Jumbo Frame

10k bytes

LED Indicator

Port: 1*Link/Act (Green) & 1*PoE Status(Orange)
1*One-key Fast Ring (Green), 1*One-key BSP (Green), 2*PWR (Red)

PoE

PoE Line Pair

1/2(+)，3/6(-)

PoE Output Power

Max POE output for single port≤30W
Whole machine output PoE power:
80W(12V), 120W(24V), 240W(48V).

Power Supply

Input Terminal

4 PIN / 5.08mm

Input Voltage

DC 12~48V DIN-rail industrial power supply (Optional)

Power Consumption

≤12W (Not inlcude PoE)

Environment

Surge Immunity

6kV, Standard: IEC61000-4-5

ESD Protection

6kV: Contact discharge, 8kV: Air discharge, Standard: IEC61000-4-2

Operating Temperature

-40~75℃

Storage Temperature

-40~85℃

Operating Humidity

5%~95% (Non-condensation)

Physical Parameter

Material

Aluminium alloy, IP40

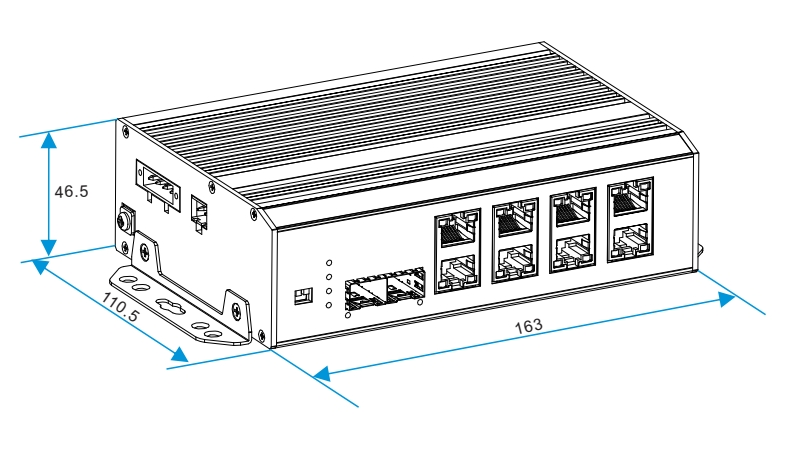

Dimensions（W*D*H）

163mm*110.5mm*46.5mm

Installation

DIN rail / Wall mounted

Weight

942g±10g

Certifications

CE, FCC

Item

Quantity

Industrial PoE Switch

1 pc

Hanger

2 pcs

Rail Bracket

1 pc

User Manual

1 pc

Mounting Kits

1 pc
