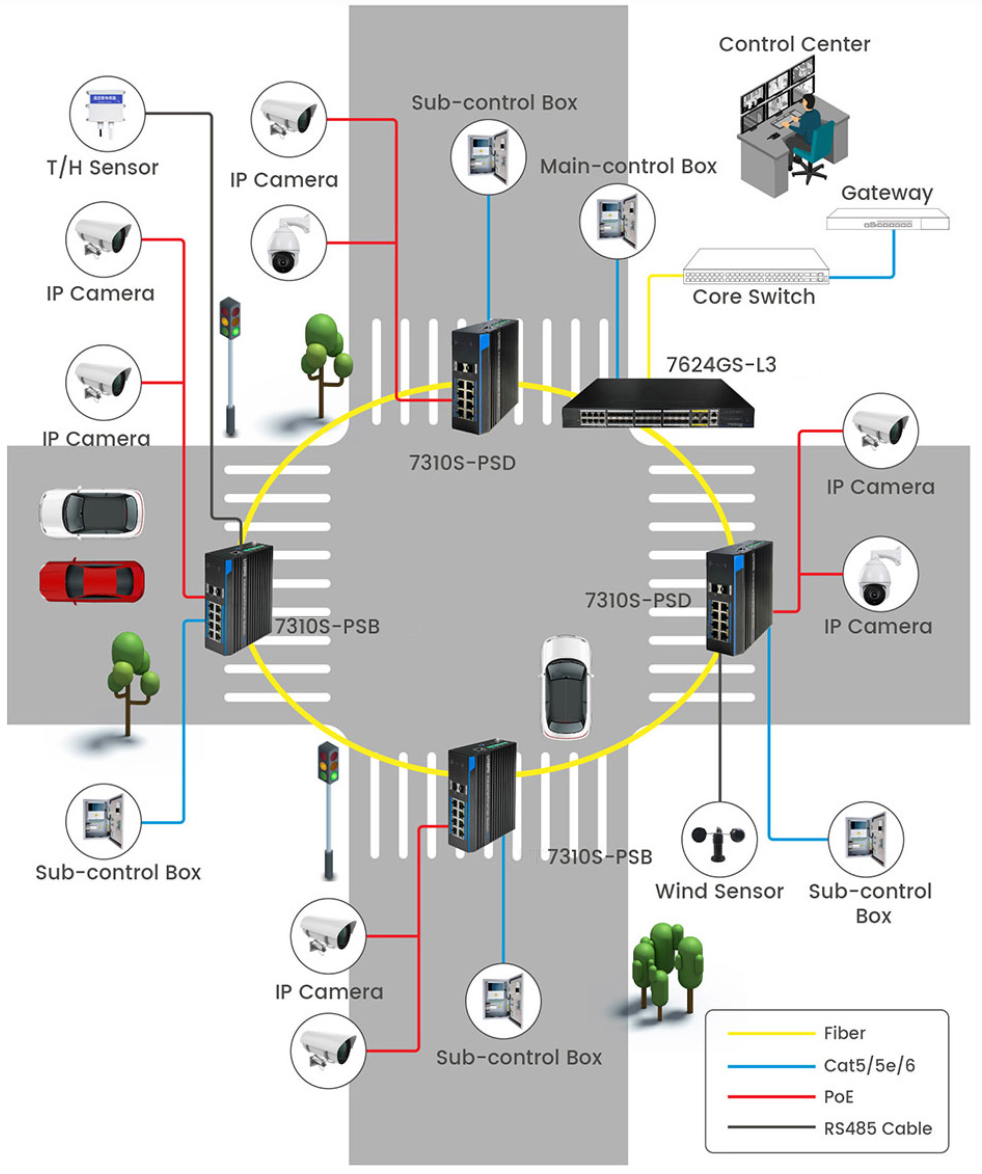

Hardware Specifications

Ethernet Port

4*10/100/1000Base-T PoE++ RJ-45(Auto-MDI/MDI-X)

4*10/100/1000Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

2*1G/2.5GBase-X SFP (The default value is 1G)

Management Port

1*RJ-45 Console

1*Relay

Serial Port

RS-485 signal: D+, D-

Check bit: None, Even, Odd, Space, Mark

Data bit: 5, 6, 7, 8bit

Stop bit: 1, 1.5, 2bit

Baud rate: 300~115200bps

Load capacity: RS-485 port supports 32-point polling environment(128-point could be customized)

Direction control: RS-485 adopts automatic data flow control technology

USB Port

USB3.0

Init Button

Short press to restart the device, Long press >5s to initialize the system

LED Indicators

2*PWR, power supply indicators

1*ALM, alarm indicator

2*Link/Act, SFP port state indicators

Cable

Cat5 or better

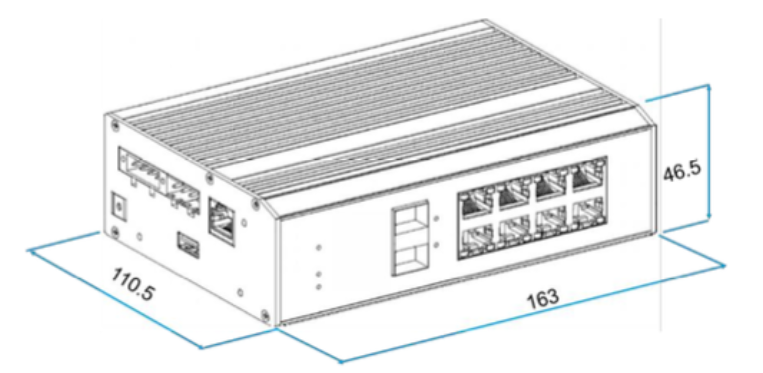

Dimensions (W*D*H)

163mm*110.5mm*46.5mm

Net Weight

0.79kg

Input Voltage

Power 1 (Main): 48~57V DC, Power 2 (Backup): 48~57V DC

Power Consumption

≤370W (Full load including PoE)

Installation

DIN-rail/Desktop/Wall mounted

Material

Metal shell

Switch Property

Forwarding Modes

Store and Forward

Switching Capacity

26Gbps / non-blocking

Packet Forwarding Rate

19.344Mpps

MAC Table

16k, support auto learning

Port Buffer

2MB

Jumbo Frame

9kB

Power Supply

PoE Standard

IEEE 802.3af/at/bt

PoE Power Supply Type

End-span

PoE Pin Assignment

1~4 ports: 3/6/4/5(+), 1/2/7/8(-); 5~8 ports: 1/2(+), 3/6(-)

PoE Budget

1~4 ports: 90W, 5~8 ports: 30W, 360W max for whole switch

Reliability

ESD

IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV

Surge Protection

IEC61000-4-5, Power: 4kV, Data Port: 6kV

Operating

-40°C ~75°C, 5%~95% (Non-condensation)

Storage

-40°C ~85°C, 5%~95% (Non-condensation)

Certifications

Certifications

CE, FCC

Software Architecture

System State

System Status

• Device Name

• MAC Address

• Firmware Version

• Hardware Version

• System Time

• Update Time

Traffic Statistics

• Port No

• Sent Frame Statistics

• Received Frame Statistics

MAC Address Table

• Sort Type

• MAC Address

• VLAN ID

• Port

• Address Type

Port Configuration

Port Setting

• Port State

• Port Speed

• Duplex Mode

• Flow Control

• Port Range

Rate Limit

• Enable and Disable

• Port Range

• Input Speed Limit

• Output Speed Limit

Storm Control

• Port Range

• Broadcast Storm

• Multicast Storm

• Unknown Unicast Storm

Port Isolation

• Port Range

• Port Isolation

LLDP Configuration

• Enable and Disable

• Holdtime

• Interval Time

• Admin Status

• Port Range

LLDP Neighbors

• Total Entries Displayed

• Device

• Mac Address

• IPv4 Address

• Local-port

• Holdtime

• Port-ID

• Capability

Mac Limit

• Enable and Disable

• Port Range

• Mac Limit Num

PoE Setting

• Power Setting

• Power Status

• Port Status and Control

Ethernet Switch

Link Aggregation

• Aggregated Load Pattern

• Trunk Name

• Aggregation Pattern

• Port Range

802.1Q VLAN

• Port Range

• Link Type

• PVID

• VLAN-allowed

• VLAN-untagged

802.1p QoS

• Enable and Disable

• QoS Scheduling

• Priority

DSCP QoS

• Enable and Disable

• DSCP Mark Range

• DSCP Priority

WRR Configuration

• Bandwidth Weights

IP Service

DHCP Server

• Enable and Disable

• Client Lease Time

• DNS Address

• WINS Server

• Pool Name

• Network Interface(VID)

• Gateway/Subnet

• Start IP Address

• Max Client Number

IP Multicast

IGMP Snooping

• IGMP Interception Setting

• IGMP Query

• Static Multicast MAC Address

• VLAN ID

• Port Range

Security Configuration

802.1X Authentication

• Global Setting

• Timing Update Authentication

• Radius Server Setting

• Server Port Setting

• Port Setting

• Port Range

Local Radius Setting

• User Login

• User Password

• Radius User Settings

AAA

• Authentication Login

Static Address Lock

• Enable and Disable

• MAC Address

• VLAN ID

• Port

MAC Dynamic Aging

• Aging Time

Reliability

Rapid Spanning Tree

• Enable and Disable

• STP Version

• Device Priority

• Message Sending Period

• Message Maximum Lifetime

• Port State Transition Delay

• This Bridge Update Message

• Modify Configuration

MSTP Region Configuration

• Enable and Disable

• Region Name

• Version

• Hello Time

• Max.Age

• Forward Delay

• Max. Hops

MSTP Instance Configuration

• Instance ID

• Corresponding VLANs

• Priority

MSTP Port Configuration

• Path Cost

• Port Priority

• Point-to-point

• Admin Edge

• Auto Edge

• Restrict Role

• Restrict TCN

• BPDU Filter

• BPDU Guard

• Root Guard

• Port Range

MSTP Instance Information

• Instance ID

• MSTP Bridge Information

• MSTP Instance Information

FastRing Protect

• Enable and Disable

• Fast Ring Network Group 1

• Fast Ring Network Group 2

Loopback Protect

• Enable and Disable

• Protect Automatic Recovery

• Disable Loop Port Time

• Port Range

• Port Loop Detection

ERPS Ring

• Ring Number

• East Interface

• West Interface

ERPS Instance

• Enable and Disable

• Name

• ID

• Ring Number

• Level

• RAPS VLAN

• Owner Interface

• Subring Blocking

• Associated Instance

Network Diagnosis

ICMPv4

• Ping IPv4

ICMPv6

• Ping IPv6

Traceroute

• Destination IP

Alarm Management

Alarm Host

• Enable and Disable

• Alarm Type

• Power Supply

• Port Network

• Port PoE

DMS

Device List

• Enable and Disable

• Type in List

Topology View

• Topology View

System Management

Port Mirroring

• Enable and Disable

• Monitor Port

• Mirror Port Range

• Collect Data

SNMP

• Enable and Disable

• SNMP Gateway

• SNMP Version

• Read-only Group Name

• Read and Write Group Name

• SNMPv3 Setting

Telnet

• Enable and Disable

HTTP

• HTTP and HTTPS

Time

• Time Setting

• World Time Zone

• NTP Server

• System Time

• PC Time

Syslog

• Enable and Disable

• Show Type

• Information Processing

Management

• Restore Factory Value

• System Reboot

• Download Configuration File

• Upload Configuration File

• Choose Upgrade File

User Setting

• Access Privilege

• Username

• Input Password

• Confirm Password

• Password Type

Timing Restart

• Every Day

• Every Week

• Every Month

Manage IP Address

• Access

• Manage VLAN

• IP Addr

• Subnet Mask

• Default Gateway

• DNS Address

• IPv6 Address

• IPv6 Default Gateway

One Key Smart

• CCTV Mode

• Device Lock

• Fast Ring

• Device Online

Switch

1 pc

Mounting Accessory

1 set

Quick Installation Guide

1 pc
