Fixed port

6x10/100/1000   Base-T

Power interface

AC100-240V   triangle interface

LED Indicators

P , Active, Speed

Cable Type &   Transmission Distance

Twisted-pair

0-100m/ 250m

Network Topology

Ring topology

Not Support

Star topology

Support

Bus topology

Support

Tree Topology

Support

Electrical Specifications

Input voltage

AC 100-240V   50/60Hz

Total Power consumption

<65W

Main board power

<3W

PoE

PoE protocol

802.3AF，802.3AT

Pin Assignment

12+  36-

Pin port

1-4

Dialing switch Instruction

1

AI POE (Auto   detect and reboot the unresponsive PoE devices for recovery )

2

1-4 port 250m   transmission

3

1-4 port port   isolation

4

Storm control

Layer 2 Switching

Switching   capacity

12G

Packet forwarding   rate

8.9Mpps

MAC address   table

4K

Forwarding delay

<10us

MDX/MIDX

Support

Environment

Operating   temperature

-10℃~+50℃

Storage   temperature

-10℃~+50℃

Relative   humidity

10%~90%   (non-condensing)

Thermal methods

Fanless   design, natural heat dissipation

MTBF

100,000 hours

EMC & Ingress Protection

Surge protection   for Ethernet port

Common mode 6KV;   differential mode: 4KV

Surge protection   for Power

Common mode 6KV;   differential mode: 4KV

DIP

IEC 61000-4-11  Level3 （10V）

ESD

IEC 61000-4-2  Level 4 （8K/15K）

Free fall

0.5m

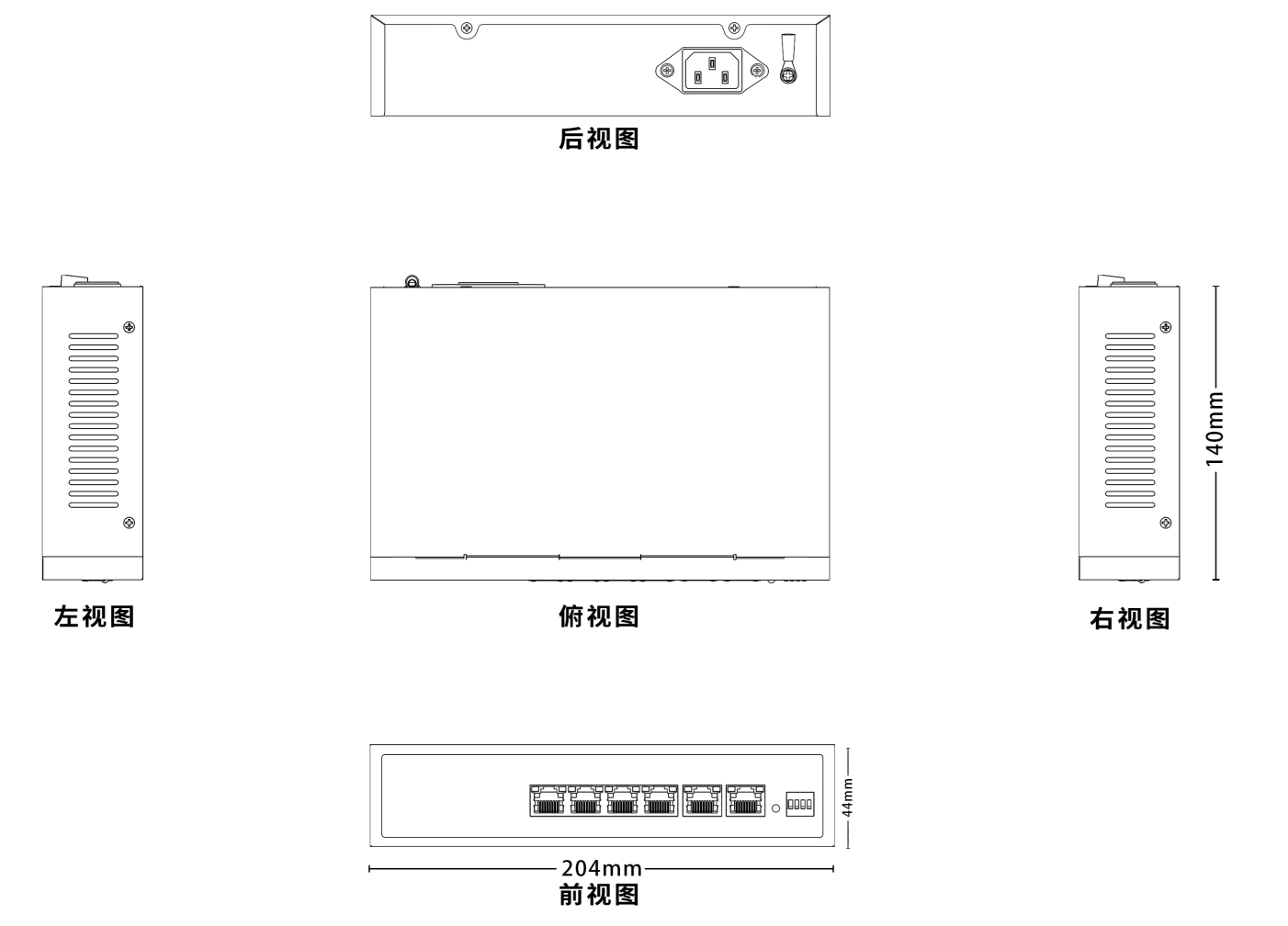

Mechanical Dimensions

Product size

220*140*44mm（LxWxH）

Installation   Method

Desktop

Weight

0.7KG

Packing List

Packing list

Device,   Inspection Certificate, User manual, AC Power cord
