Fixed port

1*100/1000Base-X+5*10/100/1000Base-T

Power interface

AC interface

LED Indicators

P , AI，active

Cable Type &   Transmission Distance

Twisted-pair

0-100m/ 250m

Monomode optical fiber

20/40/60/80/100KM

Multimode optical fibre

550M

Network Topology

Ring topology

Not Support

Star topology

Support

Bus topology

Support

Tree Topology

Support

Electrical Specifications

Input voltage

AC 100-240V   50/60Hz

Total Power consumption

≤72W

Main board power

<4W

PoE

PoE protocol

802.3AF，802.3AT

Pin Assignment

1,2+/3,6-

Pin port

1-4

Dialing switch Instruction

1

1-4 port 250m   transmission

2

1-4 port port   isolation

Layer 2 Switching

Switching   capacity

12G

Packet forwarding   rate

8.92Mpps

MAC address   table

2K

Forwarding delay

<10us

MDI/MDIX

Support

Jumbo frame

Support 9K bytes

Buffer

1M bit

Environment

Operating   temperature

-10℃~+50℃

Storage   temperature

-40℃~+70℃

Relative   humidity

10%~90%   (non-condensing)

Thermal methods

Fanless   design, natural heat dissipation

MTBF

100,000 hours

EMC & Ingress Protection

Surge protection   for Ethernet port

Common mode 4KV;   differential mode: 2KV

Surge protection   for Power

Common mode 6KV;   differential mode: 2KV

Electrostatic discharge (ESD)

8 kV contact discharge，15 kV air discharge

Free fall

0.5m

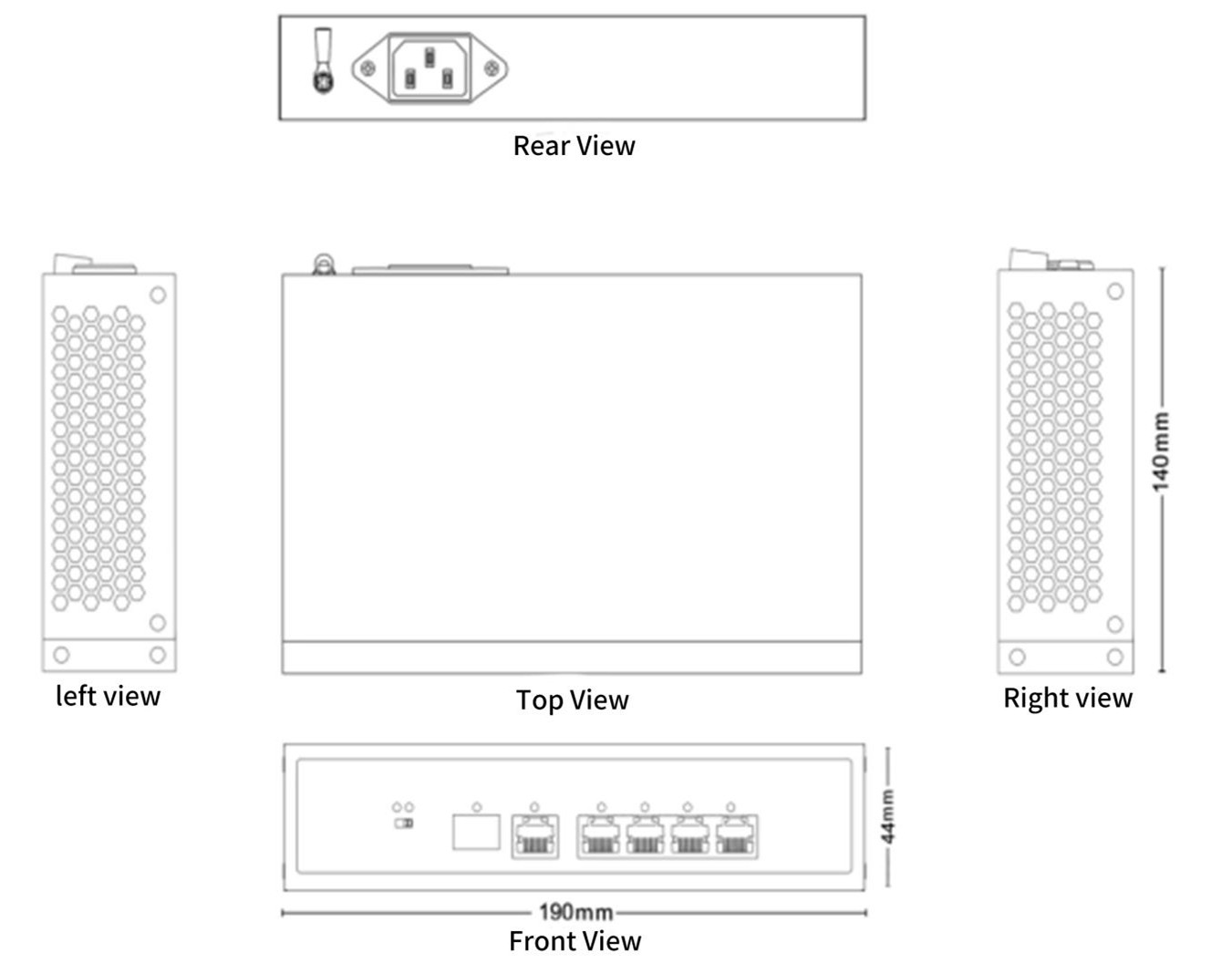

Mechanical Dimensions

Product size

190*140*44mm（LxWxH）

Installation   Method

Desktop

Weight

0.68KG

Packing List

Packing list

Device,   Inspection Certificate, User manual, AC Power cord
