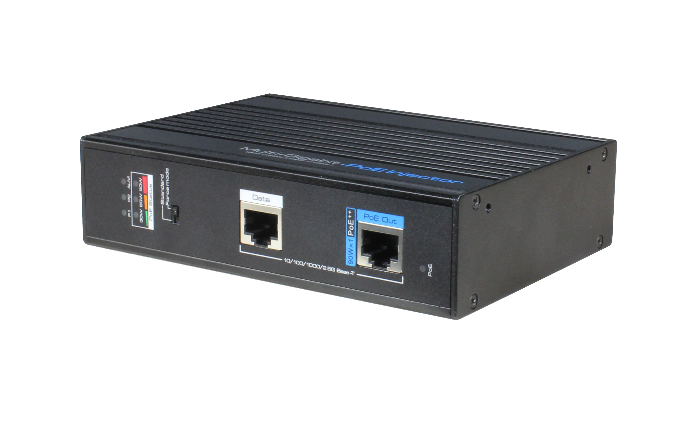

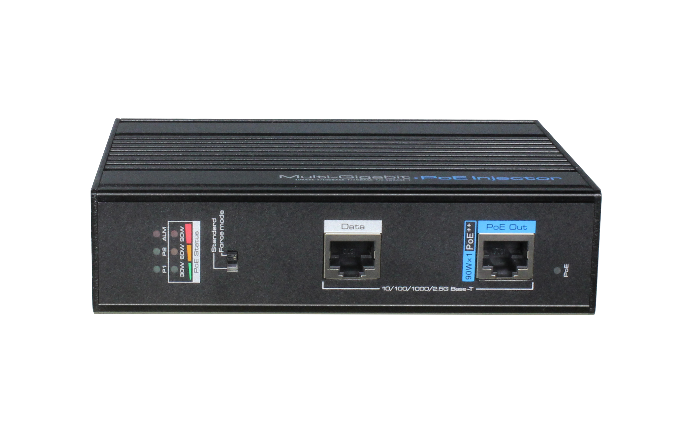

PI7301-PSD-W

Industrial Single-Port Multi-Gigabit 802.3bt PoE++ Injector (90W) with 12~57...

Description

PI7301-PSD-W

Industrial Single-Port Multi-Gigabit 802.3bt PoE++ Injector (90W) with 12~57V DC input

This series of products is Industrial 90W PoE Injector.

This series injector can upgrade existing network infrastructure to the IEEE802.3bt PoE++ network system without changing the existing Ethernet equipment.

This series Injector meets IEEE 802.3af/at/bt standard. The PoE output port can deliver up to 90W power. It supports 10/100/1000/2.5Gbps transmission rate, and the transmission distance is up to 100m. This product supports a relay function to alarm power supply breaks. It could provide a quick, safe, and cost-effective 802.3bt PoE++ network solution for customers.

This series includes three models:

PI7302-PSD-W: Industrial 2-Port Multi-Gigabit 802.3bt PoE++ Injector (90W) with 12~57V DC input

PI7301-PSD-W: Industrial Single-Port Multi-Gigabit 802.3bt PoE++ Injector (90W) with 12~57V DC input

PI7301-PSD: Industrial Single-Port Multi-Gigabit 802.3bt PoE++ Injector (90W) with 48~57V DC input

FEATURES AND HIGHTLIGHTS：

Provide 10/100/1000/2.5 Gbps Ethernet ports

● PI7302-PSD-W: 2* input ports, 2* output ports

● PI7301-PSD-W/PI7301-PSD: 1* input port, 1* output port

DC power input

● PI7302-PSD-W,PI7301-PSD-W: 12~57VDC

● PI7301-PSD: 48~57VDC

Great PoE Compatibility

● All ports comply with IEEE802.3af, IEEE802.3at, IEEE802.3bt

● PoE output port can auto detect powered device and the output power

● Transmit both Ethernet data and PoE to 100 meters

PoE Mode DIP Switch

This series of injector support two PoE modes:

● Standard: In this mode, the PoE injector provides power to the PD devices that follow the IEEE802.3af/at/bt standard

● Force mode: In this mode, the PoE injector outputs 54V DC constantly

Note: Do not connect PD devices with a Max working voltage lower than 54V DC.

Industrial Case and Installation

● DIN-rail design/Wall-mount

● Supports 6kV surge immunity and 8kV ESD protection

● Wide working temperature: -40~75℃

● Plug and play, DIN-rail installation

Specifications：

Items	PI7302-PSD-W	PI7301-PSD-W	PI7301-PSD
Hardware Specifications
Copper Ports	2 * 10/100/1000/2.5G Base-T RJ-45 Data input ports	1 * 10/100/1000/2.5G Base-T RJ-45 Data input port
	2* 10/100/1000/2.5G Base-T RJ-45 PoE output ports	1 * 10/100/1000/2.5G Base-T RJ-45 PoE output port
Connector	Removable 4-pin terminal block for DC power: pins 1 and 2 for power 1, pins 3 and 4 for power 2 Removable 2-pin terminal block for relay alarm
Cable	Cat5e or better
Transmission Rate	10/100/1000/2.5Gbps
Transmission Distance	100m (Max)
Dimensions (WDH)	143mm103mm36mm
Net Weight	0.665kg
Power Requirements	12~57V DC	12~57V DC	48~57V DC
Installation	DIN-rail / Wall-mount/ Desktop
Material	Metal shell
PoE
Device Type	PSE (Power Sourcing Equipment)
PoE Type	Mid-Span, End-Span
PoE Standard	IEEE 802.3af/at/bt
PoE Pin Assignment	3/6/4/5(+), 1/2/7/8(-)
PoE Power Output	54V DC	54V DC	48~57V DC
PoE Budget	180W (max)	90W (max)	90W (max)
	12V/60W	12V/60W	/
	24V/90W	24V/90W	/
	48V/180W	48V/90W	48V/90W
EMC
EMC	FCC 47 CFR Part 15 Class A EN55032 Class A
	IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV IEC61000-4-3, Level 2: 3V/m
	IEC61000-4-4, Level 2: 1kV
	IEC61000-4-5, line to earth: 6kV
	IEC61000-4-6, Level 2, (0.15MHz~80MHz)
LVD
LVD	EN 62368-1:2020 EN 62328-A11:2020
Environments
Operating	Temperature: -40℃~75℃
	Relative Humidity: 5%~95% (Non-condensation)
Storage	Temperature: -40℃~85℃
	Relative Humidity: 5%~95% (Non-condensation)
Certifications
Certifications	CE, FCC

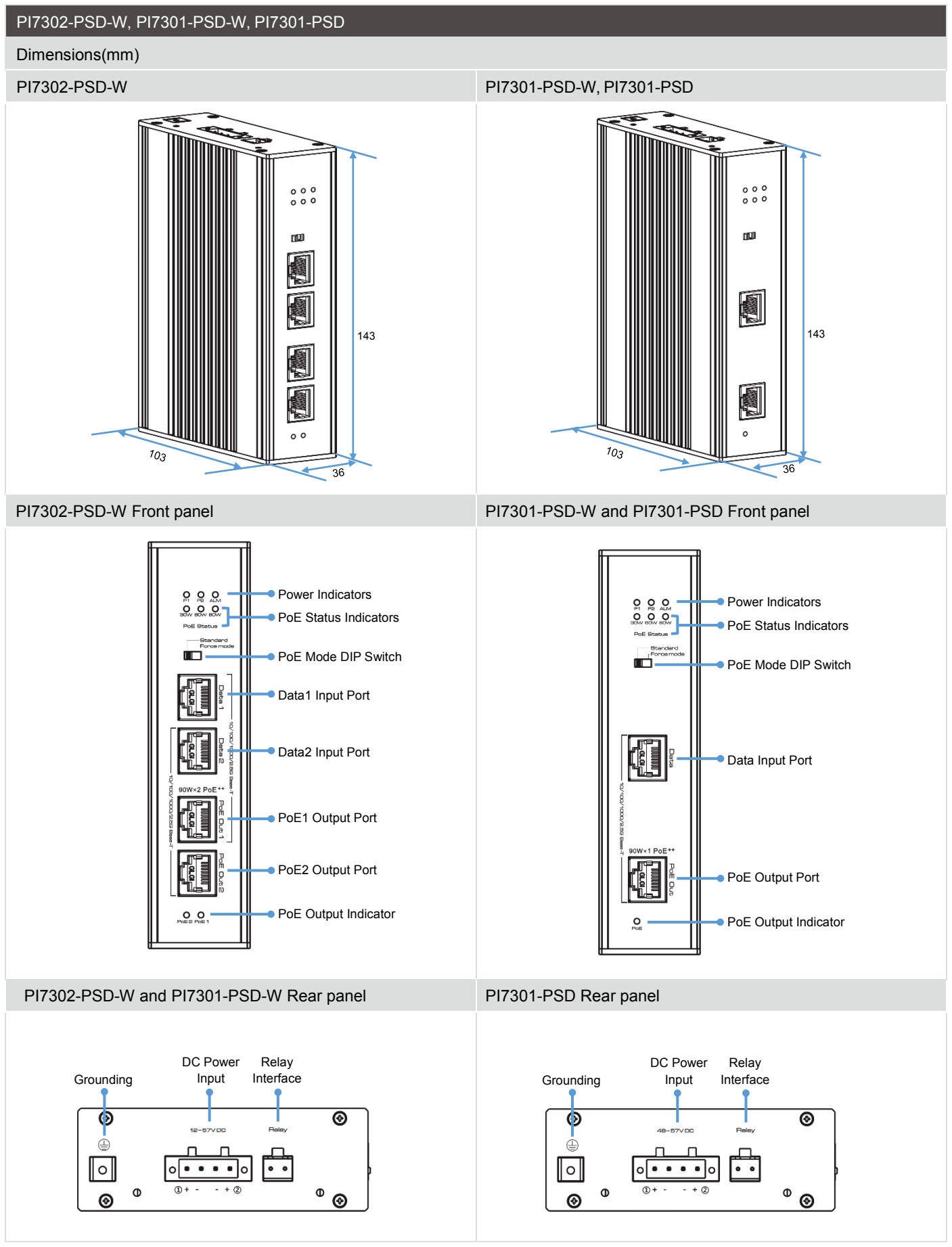

Dimensions：

Package：

Item	Quantity
PoE Injector	1 pc
Mounting Accessory	1 set
Quick Installation Guide	1 pc
