FEATURES AND HIGHTLIGHTS：
Specifications：
|
Item |
3106-PSD |
3210-PSD |
|
Hardware Specifications |
||
|
Downlink Ports |
4*10/100BASE-T PoE RJ-45(Auto-MDI/MDI-X) |
8*10/100BASE-T PoE RJ-45(Auto-MDI/MDI-X) |
|
Uplink Ports |
2*10/100BASE-T RJ-45(Auto-MDI/MDI-X) |
2*10/100/1000BASE-T RJ-45(Auto-MDI/MDI-X) |
|
LED Indicators |
1*PWR, power indicator |
|
|
6*Link, port indicators |
10*Link, port indicators |
|
|
4*PoE, PoE indicators |
8*PoE, PoE indicators |
|
|
DIP Switch |
Default: All ports are free to communicate, transmission distance: 0~100m. |
|
|
VLAN mode: downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog. |
||
|
CCTV mode: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog. |
||
|
PoE Mode DIP Switch |
/ |
Mode1: 45W max for each port |
|
Mode2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each. |
||
|
Input Voltage |
48~57V DC |
|
|
Power Consumption |
≤130W (Full load including PoE) |
≤160W (Full load including PoE) |
|
Dimensions (W*D*H) |
122mm*92mm*25mm |
180mm*92mm*25mm |
|
Net Weight |
0.21kg |
0.31kg |
|
Installation |
Desktop/Wall mounted |
|
|
Material |
Metal shell |
|
|
Color |
Black |
|
|
Switch Property |
||
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|
|
Forwarding Modes |
Store and Forward |
|
|
MAC Table |
2k |
8k |
|
Switching Capacity |
1.2Gbps |
5.6Gbps |
|
Packet Forwarding Rate |
0.8928Mpps |
4.1664Mpps |
|
Power Supply |
||
|
PoE Power Supply Type |
End-span |
|
|
PoE Standard |
IEEE 802.3af/at/bt(PSE) |
IEEE 802.3af/at/bt(PSE) |
|
PoE Pin Assignment |
1 port:3/6/4/5(+),1/2/7/8(-) |
1 port:3/6/4/5(+),1/2/7/8(-) |
|
2~4 ports:1/2(+), 3/6(-) |
2~8 ports:1/2(+), 3/6(-) |
|
|
PoE Budget |
90W max for port 1, 45W max for ports 2 to 4 each |
Mode1: 45W max for each port. |
|
120W max for whole switch |
Mode2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each |
|
|
Reliability |
||
|
ESD |
Contact Discharge: ±6kV, Air Discharge: ±8kV |
|
|
Surge |
6kV |
|
|
Operating |
-10°C~55°C, 5%~95% (Non-condensation) |
|
|
Storage |
-40°C~70°C, 5%~95% (Non-condensation) |
|

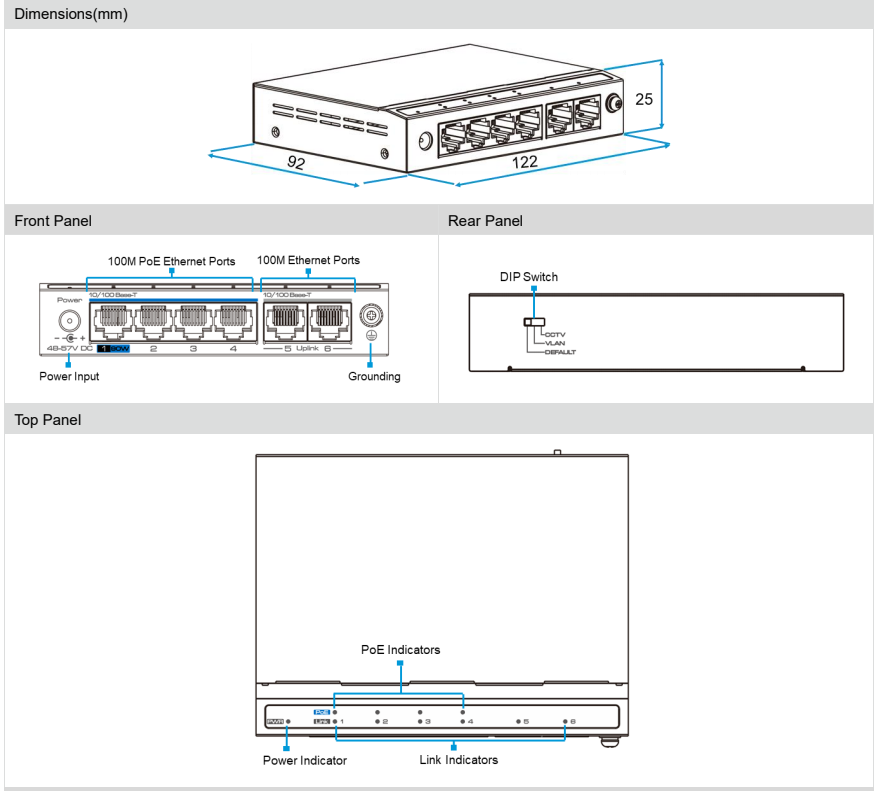

Dimensions：
Package：
|
Item |
Quantity |
|
Switch |
1 pc |
|
Power Adapter |
1 pc |
|
Power Cable |
1 pc |
|
Quick Installation Guide |
1 pc |
