Downlink Ports

24* 10/100Base-TX (PoE)

Uplink Ports

2*1000Base-X SFP Port and 2*10/100/1000Base-T

Network Standard

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X,  IEEE 802.1Q, IEEE 802.1p   IEEE 802.3ad ,  IEEE 802.1D, IEEE 802.1X

Switching Capacity

12.8Gbps

Packet Forwarding Rate

9.52Mpps

Forwarding Modes

Store and Forward

MAC Address Table

16K

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+), 3/6(-)

PoE Output Power

54V DC , 30 watts max

PoE Budget

390 watts max

Surge Immunity

6KV    Execute:IEC61000-4-5

ESD Immunity

6KV  Contact discharge

8KV  Air discharge

Execute:IEC61000-4-2

Power Supply

100~240V AC, 50/60Hz

Power Consumption

＜450W (Including PoE)

Operating Temperature

-10℃~50℃

Storage temperature

-40℃~85℃

Operating Humidity

5%-95% (Non-condensing)

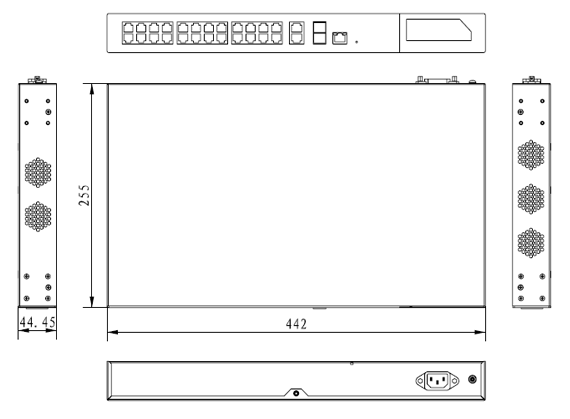

Dimension（L×W×H）

442mm×255mm×44.5mm

Weight

3.73kg

Certification

CE, FCC, ROHS

Port Management

Support port enabling and disabling

Support port speed settings

Support port full-duplex mode

Support IEEE802.3x flow control

Support port name modification

VLAN

Support of 4K VLAN

supports 802.1Q VLAN protocol

Support VLAN based on port

Quality of Service

Support QoS Congestion Management

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Support 802.1p CoS/DSCP priority

Multicast Management

Support SNMPV1 / V2 / V3 protocols

Support IGMP Snooping

POE management

Support Total Power Control

Support PoE On Off

Support single-port 30W output，Output port and priority

Security Features

Supports IP, MAC, port, VLAN binding combinations

Support MAC address auto-learning, aging and filtration

Support port isolation, port speed limit

Support RSTP

Support 5 groups of link aggregation

Support 802.1X

System Management

Web-based GUI and CLI management

Support FTP / TFTP / HTTP load upgrade

Support traffic statistics

Support MAC address table query

Support IP address, DNS server modifications

Support user name and password modification

Support for history, log management

Support System Configuration Backup

Support to recover the default factory settings on reboot
