Hardware Specifications

Downlink Port

4*10/100/1000 BASE-T PoE++ RJ-45(Auto-MDI/MDI-X)

Uplink Port

1*10/100/1000 BASE-T RJ-45(Supports up to 90W PoE++ power input)

1*1000 BASE-X SFP

Management Port

1*Relay

DIP Switch

CCTV mode: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps.

LED Indicators

2*PWR, power indicators

1*SFP port indicator

1*ALM, alarm indicator

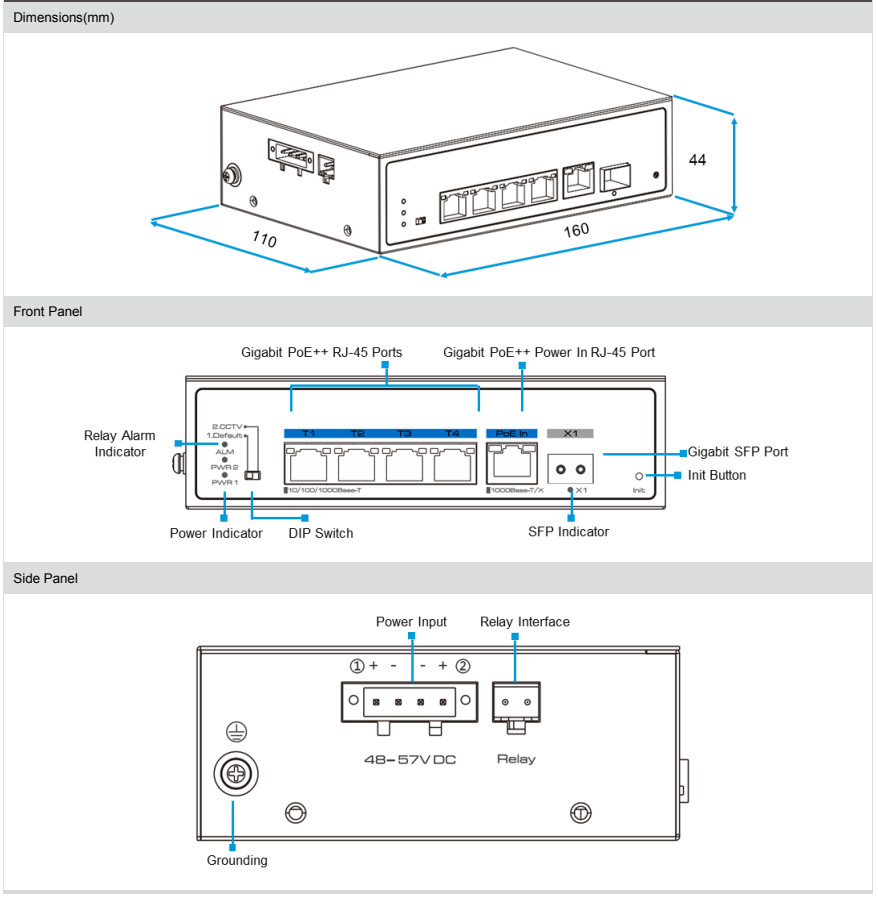

Dimensions (W*D*H)

160mm*110mm*44mm

Net Weight

0.59kg

Input Power

PoE: IEEE 802.3af/at/bt standard, 90W max.

Power 1 (Main): 48~57V DC, Power 2 (Backup): 48~57V DC

Power Consumption

≤130W (Full load including PoE)

Material

Metal shell

Installation

DIN-rail/Desktop/Wall mounted

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Forwarding Modes

Store and forward

MAC Table

2k, support auto learning

Switching Capacity

12Gbps/non-blocking

Packet Forwarding Rate

8.928Mpps

Port Buffer

1MB

Jumbo Frame

9716 Bytes

Power Supply

PoE Standard

IEEE 802.3af/at/bt (PD&PSE)

PoE Power Supply Type

End-span

PoE Pin Assignment

3/6/4/5(+), 1/2/7/8(-)

PoE Budget

90W max for each port, 75W max for whole switch (PoE++ input), 120W max for whole switch (DC input)

Alarm Signal Output by Relay

Alarm Signal Output by Relay

Support relay alarm for power off

Reliability

ESD

IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV

Surge

IEC61000-4-5, line to earth: 6kV

Operating

-20℃~65℃, 5%~95% (Non-condensation)

Storage

-40℃~85℃, 5%~95% (Non-condensation)

Certifications

Certifications

CE, FCC
