7304GE-POE

7308GE-POE

Hardware Specifications

Downlink Ports

4*10/100/1000Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

8*10/100/1000Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

Uplink Ports

2*1000Base-X SFP

4*1000Base-X SFP

Console Port

1*RS-232 console port(115200,8,N,1)

Alarm Output

1*Relay

LED Indicators

2*Power indicators
1*Alarm indicator
2*SFP port indicators
4*Port Link/ACT indicators
4*PoE indicators(For PoE type only)
1*Fast Ring indicator

2*Power indicators
1*Alarm indicator
4*SFP port indicators
8*Port Link/ACT indicators
8*PoE indicators(For PoE type only)

Init Button

Short press to restart, Long press >5s to initialize the system

DIP Switch

Default mode: Disable Fast Ring function
Ring mode: Enable Fast Ring on X1~X2 SFP ports

N/A

Input Voltage

48~57V DC

Power Consumption

≤20W (Full load, not including PoE)

≤30W (Full load, not including PoE)

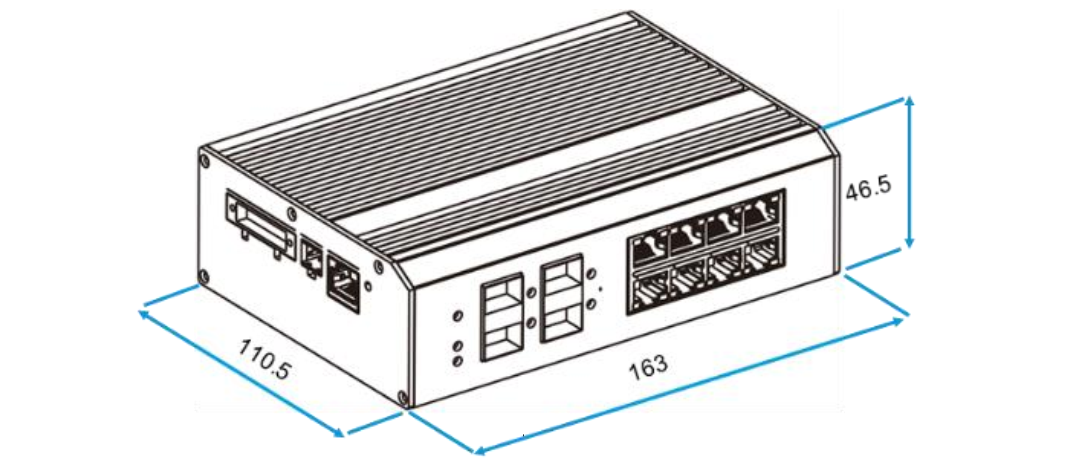

Dimensions(W*D*H)

163mm*110.5mm*46.5mm

Material

Metal shell

Installation

DIN-rail/Wall mounted/Desktop

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad,
IEEE 802.1D, IEEE 802.1X

Forwarding Modes

Store and Forward

Packet Buffer

4Mbit

MAC Table

8k

Switching Capacity

12Gbps/non-blocking

24Gbps/non-blocking

Packet Forwarding Rate

8.9Mpps

17.9Mpps

Jumbo Frame

10k bytes

Reliability

Surge Immunity

6kV, Standard: IEC6000-4-5

ESD Protection

6kV Contact Discharge, 8kV Air Discharge,
Standard:IEC61000-4-2

8kV Contact Discharge,15kV Air Discharge,
Standard:IEC61000-4-2

Operating Temperature

-40°C ~75°C

Storage Temperature

-40°C ~85°C

Operating Humidity

5%~95%(Non-condensation)

PoE

PoE Standard

IEEE 802.3af/at(PSE)

PoE Supply Type

End-span

PoE Pin Assignment

1/2(+),3/6(-)

PoE Budget

60W PoE for port 1, 30W PoE for other ports

60W PoE for port 1, 30W PoE for other ports

Software Architecture

System Status

System Status

• Device Name
• MAC Address
• Firmware Version
• Hardware Version
• System Time
• Update Time

Port Configuration

Port Setting

• Port State
• Port Speed
• Duplex Mode
• Traffic Control
• Port Range

Rate Limit

• Enable and Disable
• Port Range
• Input Speed Limit
• Output Speed Limit

Storm Control

• Port Range
• Broadcast Storm
• Multicast Storm
• Unknown Unicast Storm

PoE Setting (Only for 7304GE-POE, 7308GE-POE)

Power Control

• Power Setting
• Power Status
• Port Status and Control

Schedule

• Restart Setting
• Working Setting

VLAN

VLAN

• Port-based VLAN
• VLAN Forward
• Voice VLAN OUI
• PVLAN
• MAC-based VLAN
• Protocol-based VLAN
• GVRP
• QinQ

QoS

802.1p QoS

• 802.1p Priority
• Output Queue

DSCP

• DSCP Value Range
• Output Queue

Redundancy

LACP

• Trunk Setting

Fast-Ring Protection

• Fast-Ring Network Group 1
• Fast-Ring Network Group 2

Rapid Spanning Tree

• STP Version
• Device Priority
• Message Sending Period
• Message Maximum Lifetime
• Port State Transition Delay
• This Bridge Update Message
• Modify Configuration

Loopback Protection

• Protect Automatic Recovery
• Disable Loop Port Time
• Port Range
• Port Loop Detection

ERPS Ring

• Ring Number
• East Interface
• West Interface

ERPS Instance

• EPRS Instance Name
• ERPS Instance ID
• ERPS Ring Level
• RAPS VLAN
• Owner Interface
• Subring Block
• Associated Instance

Port Reliability

Static Address Lock

• Enable and Disable
• MAC Address, VLAN ID, Port

802.1X Authentication

• Authentication Timer
• Radius Server Setting
• Port Setting

Radius Database

• Radius Server Setting

Network Management

SNMP

• SNMP Server
• SNMP Version
• Read-only Group Name
• Read and Write Group Name
• SNMP V3 Setting

Port Mirroring

• Monitor Port
• Mirror Port Range
• Collect Data

Email Alarm

• Mail Server Setting
• Receiver Address
• Mail Replay Address
• Mail Interval

IGMP Snooping

• IGMP Query
• IGMP Query Interval
• Group Member Alive Time

DHCP Server

• Client Lease Time
• DNS Address
• Win Server
• Network Interface
• Default Gateway
• Start IP Address
• Max Client Number

DHCP Relay

• Option 82
• DHCP Server Address

DHCP Snooping

• Trust Port Setting

DHCPv6 Snooping

• Trust Port Setting

Telnet Setting

• Enable and Disable

Network Information

Packet Statistics

• Sent Packet Statistics
• Received Packet Statistics

Traffic Statistics

• Sent Frame Statistics
• Received Frame Statistics

MAC Address Table

• MAC Address Table
• Sort Type

System Management

IP Address

• Manage VLAN
• DHCP Client
• IPv4 Address
• Default Gateway
• DNS Address
• IPv6 Address

User Setting

• Access Privilege
• Account Setting

Syslog

• Log Query, Download, Clearing

File Management

• Restore Factory Value
• System Reboot
• Download Configuration File
• Upload Configuration File
• System Upgrade

Web Access

• HTTP
• HTTPS

Timing Start

• Restart Every Day/Week/Month

Alarm Management

• Port Network
• Port PoE

One Key Smart

• CCTV Mode
• Device Lock
• Fast Ring
• Device Online (PoE watchdog)
