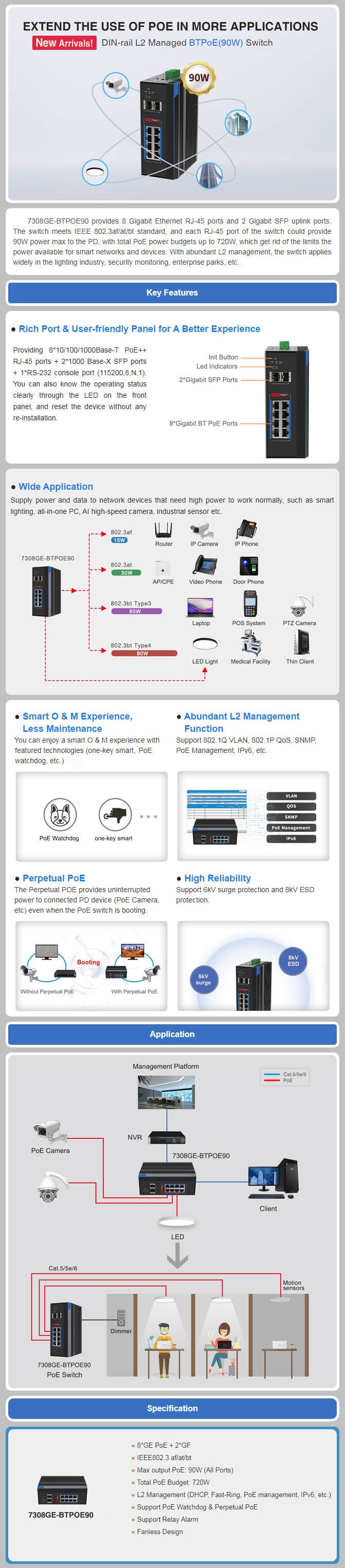

Items

7308GE-BTPOE

7308GE-BTPOE90

Physical Ports

Downlink Ports

8*10/100/1000Base-T PoE++ RJ-45 (Auto-MDI/MDI-X)

Uplink Ports

2*1000 Base-X SFP (Mini-GBIC)

Console Port

1*RS-232 console port (115200,8,N,1)

Alarm Output

1 channel relay alarm output, 1A@DC 12V, 2 cores, 5.08mm terminal

PoE

PoE Standard

IEEE 802.3af/at/bt (PSE)

PoE Power Supply Type

End-span

PoE Pin Assignment

3/6/4/5 (+)，1/2/7/8 (-)

3/6/4/5 (+)，1/2/7/8 (-)

PoE Power Output

52~57V DC

PoE Power

90W max for each port (full load with 52V DC input voltage)
480W max for whole switch

90W max for each port (full load with 52V DC input voltage)
720W max for whole switch

Switch Property

Standards

IEEE 802.3 , IEEE 802.3u, IEEE 802.3ab, IEEE 802.3Z, IEEE 802.3X, IEEE 802.1D

Forwarding Modes

Store and Forward

Packet Buffer

4Mbyte

MAC Table

8k

Switching Capacity

20Gbps / non-blocking

Packet Forwarding Rate

14.9Mpps

Jumbo Frame

16kB

Power Supply

Input Voltage

DC 48~57V

Power Consumption

≤20W (Not including PoE)

Reliability

Surge Immunity

6kV, Standard: IEC6000-4-5

ESD Protection

6kV Contact Discharge, 8kV Air Discharge, standard: IEC61000-4-2

MTBF

285130h

MTBF Standards

Telcordia SR-332, 25℃

Operating Temperature

-10℃~50℃

-40℃~55℃ (720W)
-40℃~75℃ (420W)

Storage Temperature

-40℃~85℃

Operating Humidity

5%~95% (Non-condensation)

Physical Parameter

Led Indicators

1* Power indicator

1* System status indicator

1* Alarm indicator

2* SFP port indicators

8* Port Link/ACT indicators

8* PoE indicators

Init Button

Short press to restart, Long press ＞5s to initialize the system

Dimensions (W*D*H)

163.2mm*110mm*65.8mm

Net Weight

1210g±20g

1560g±20g

Material

Metal shell

Installation

DIN-rail/wall mounted/desktop

Certifications

Certifications

CE, FCC

Software Specifications

System State

System Status

• Device Name
• MAC Address
• Firmware Version
• Hardware Version
• System Time
• Update Time

Port Configuration

Port Setting

• Port State
• Port Speed
• Duplex Mode
• Traffic Control
• Port Range

Rate Limit

• Enable and Disable
• Port Range
• Input Speed Limit
• Output Speed Limit

Storm Control

• Port Range
• Broadcast Storm
• Multicast Storm
• Unknown Unicast Storm

PoE Setting

Power Control

• Power Setting
• Power Status
• Port Status and Control

Schedule

• Restart Setting
• Working Setting

VLAN

VLAN

• Port-based VLAN
• VLAN Forward
• Voice VLAN OUI
• PVLAN
• MAC-based VLAN
• Protocol-based VLAN
• GVRP
• QinQ

QoS

802.1P QoS

• 802.1P Priority
• Output Queue

DSCP

• DSCP Value Range
• Output Queue

Redundancy

LACP

• Trunk Setting

Fast-Ring Protection

• Fast-Ring Network Group 1
• Fast-Ring Network Group 2

Rapid Spanning Tree

• STP Version
• Device Priority
• Message Sending Period
• Message Maximum Lifetime
• Port State Transition Delay
• This Bridge Update Message
• Modify Configuration

Loopback Protection

• Protect Automatic Recovery
• Disable Loop Port Time
• Port Range
• Port Loop Detection

ERPS Ring

• Ring Number
• East Interface
• West Interface

ERPS Instance

• EPRS Instance Name
• ERPS Instance ID
• ERPS Ring Level
• RAPS VLAN
• Owner Interface
• Subring Block
• Associated Instance

Port Reliability

• Enable and Disable
• MAC Address, VLAN ID, Port

Static Address Lock

• Enable and Disable
• MAC Address, VLAN ID, Port

802.1x Authentication

• Authentication Timer
• Radius Server Setting
• Port Setting

Radius Database

• Radius Server Setting

Network Management

SNMP

• SNMP Server
• SNMP Version
• Read-only Group Name
• Read and Write Group Name
• SNMP V3 Setting

Port Mirroring

• Monitor Port
• Mirror Port Range
• Collect Data

Email Alarm

• Mail Server Setting
• Receiver Address
• Mail Replay Address
• Mail Interval

IGMP Snooping

• IGMP Query
• IGMP Query Interval
• Group Member Alive Time

DHCP Server

• Client Lease Time
• DNS Address
• Win Server
• Network Interface
• Default Gateway
• Start IP Address
• Max Client Number

DHCP Relay

• Option 82
• DHCP Server Address

DHCP Snooping

• Trust Port Setting

DHCPv6 Snooping

• Trust Port Setting

Telnet Setting

• Enable and Disable

Network Information

Packet Statistics

• Sent Packet Statistics
• Received Packet Statistics

Traffic Statistics

• Sent Frame Statistics
• Received Frame Statistics

MAC Address Table

• MAC Address Table
• Sort Type

System Management

IPAddress

• Manage VLAN
• DHCP Client
• IPv4 Address
• Default Gateway
• DNSAddress
• IPv6 Address

User Setting

• Access Privilege
•  Account Setting

User Setting

• Log Query
• Log Download
• Log Clearing

File Management

• Restore Factory Value
• System Reboot
• Download Configuration File
• Upload Configuration File
• System Upgrade

Web Access

• HTTP
• HTTPS

Timing Start

• Restart Every Day/Week/Month

Alarm Management

• Port Network
• Port PoE

One Key Smart

• CCTV Mode
• Device Lock
• Fast Ring
• Device Online (PoE watchdog)

Items

Quantity

Switch

1 set

Mounting Accessory

1 set

Quick Installation Guide

1 pc
