FEATURES AND HIGHTLIGHTS：
Specifications：
Items | PI3301-PSD | |
Hardware specifications | ||
Interface | 1*10/100/1000/2.5GBASE-T PoE++ RJ-45(Auto-MDI/MDI-X) | |
1*10/100/1000/2.5GBASE-T RJ-45(Auto-MDI/MDI-X) | ||
Input Voltage | 100~240V AC | |
Power Consumption | ≤0.6W(System) | |
LED Indicator | 1*power indicator | |
1*PoE indicator | ||
Dimensions (L*W*H) | 160mm*64mm*37mm | |
Net Weight | 0.28kg | |
Material | ABS plastic | |
Color | Black | |
Noise | ≤40dB | |
PoE | ||
PoE Standard | IEEE 802.3af/at/bt | |
PoE Power Supply Type | Midspan | |
PoE Pin Assignment | 3/6/4/5(+), 1/2/7/8(-) | |
PoE Budget | 90W max | |
Reliability | ||
EMC | IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV | |
IEC61000-4-3, Level 2: 3V/m | ||
IEC61000-4-4, Level 2: 1kV | ||
IEC61000-4-5, Line to earth: 6kV | ||
IEC61000-4-6, Level 2(0.15~80MHz) | ||
Operating | -5°C~45°C, 5%~85%(Non-condensation) | |
Storage | -30°C~70°C, 5%~85%(Non-condensation) | |

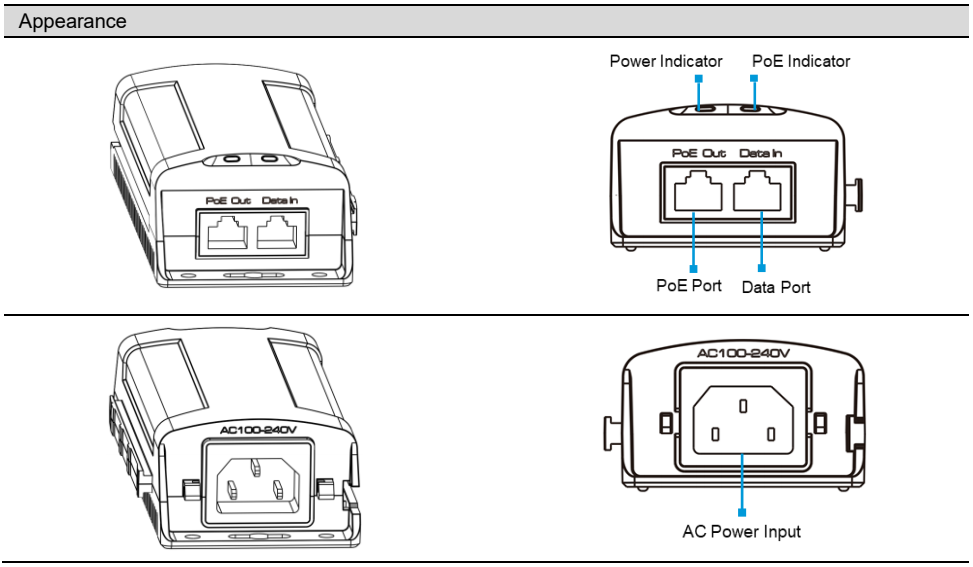

Dimensions：

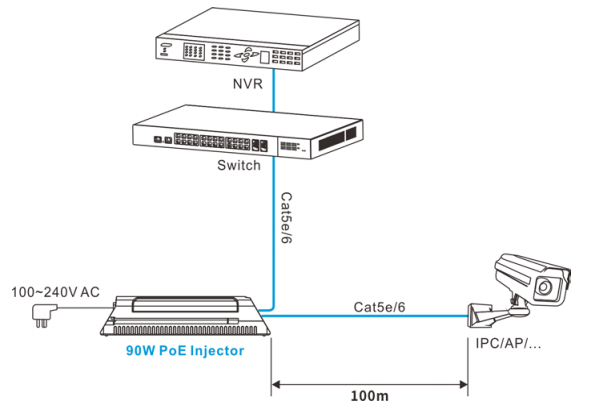

Applications：
Package：
Item | Quantity |
PoE Injector | 1 pc |
Mounting Accessory | 1 set |
Quick Installation Guide | 1 pc |
