Hardware Specifications

Downlink Port

4*10/100Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

8*10/100Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

Uplink Port

1*10/100Base-T RJ-45

1*10/100/1000Base-T RJ-45

1*100Base-FX SFP

1*1000Base-X SFP

LED Indicator

1*Power indicators

1*Power indicators

1*Fiber link indicator

1*Fiber link indicator

1*CCTV indicator

1*CCTV indicator

4*Downlink port Link/ACT indicators

8*Downlink port Link/ACT indicators

4*Downlink port PoE indicators

8*Downlink port PoE indicators

1*Uplink port Link/ACT indicator

1*Uplink port Link/ACT indicator

DIP Switch

CCTV mode: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports VLAN (all downlink ports are isolated from each other, but can communicate with uplink ports) and restrain network storm, PoE switch supports PoE watchdog.

Input Voltage

48~57V DC

Power Consumption

≤5W (Full load without PoE)

≤5W (Full load without PoE)

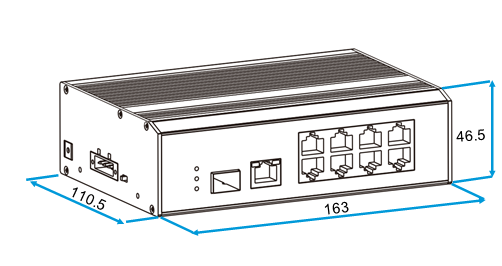

Dimension(W*D*H)

163mm*110.5mm*46.5mm

Material

Metal shell

Installation

DIN-rail/desktop/wall mounted

PoE

PoE Standard

IEEE 802.3af/at(PSE)

PoE Power Supply Type

End-span

PoE Pin Assignment

1/2(+), 3/6(-)

PoE Power Output

44~57V DC

PoE Power

30W max for each port, 60W max for whole switch

30W max for each port, 120W max for whole switch

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3X

Forwarding Modes

Store and Forward

Packet Buffer

512k

1M

MAC Table

2k

8k

Switching Capacity

1.2Gbps/non-blocking

5.6Gbps/non-blocking

Packet Forwarding Rate

0.9Mpps

4.2Mpps

Jumbo Frame

1632 bytes

1632 bytes

Reliability

Surge Immunity

6kV, Standard: IEC6000-4-5

ESD

6kV Contact Discharge, 8kV Air Discharge, standard: IEC61000-4-2

Operating Temperature

-40°C ~75°C

Storage Temperature

-40°C ~85°C

Operating Humidity

5%~95% (Non-condensation)

Certifications

Certifications

CE, FCC
