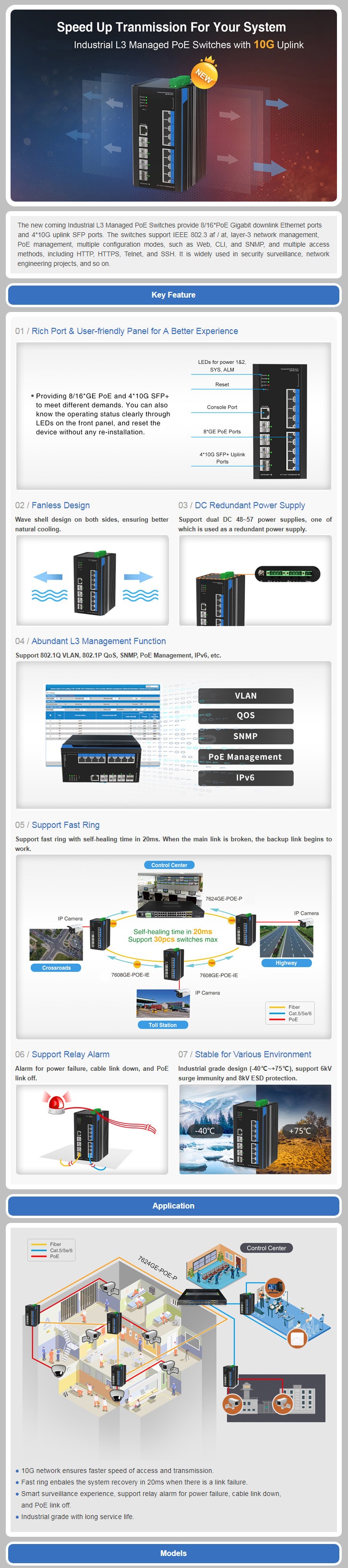

FEATURES AND HIGHLIGHTS：
Specifications：
Items | 7616GE-POE-IE |
Ethernet Ports | |
Copper Ports | 16*10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X) |
SFP Ports | 4*1000M/10G Base-X SFP(Mini-GBIC) |
Console Port | 1*RJ45-R232 serial port (115200,8,N,1) |
PoE | |
PoE Standard | IEEE 802.3af/at (PSE) |
PoE Power Supply Type | End-span |
PoE Pin Assignment | 1/2(+)，3/6(-) |
PoE Power Output | 46~55V DC |
PoE Power | 30W max for each port, 360W max |
Switch Property | |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1x |
Forwarding Modes | Store and Forward |
Packet Buffer | 12Mbit |
MAC Table | 16k, supported auto learning |
Switching Capacity | 112Gbps / non-blocking |
Packet Forwarding Rate | 83.3Mpps |
Jumbo Frame | 9kB |
Power Supply | |
Input Voltage | Power 1 (Main): 48~57V DC, Power 2 (Backup): 48~57V DC |
Power Consumption | 380W (Including PoE) |
Reliability | |
Surge Immunity | 6kV, Standard: IEC6000-4-5 |
ESD Protection | 8kV Contact Discharge,15kV Air Discharge, Standard: IEC61000-4-2 |
MTBF | 295040h |
MTBF Standards | Telcordia SR-332，25℃ |
Protection Level | IP40 |
Operating Temperature | -40℃~75℃ |
Storage Temperature | -40℃~85℃ |
Operating Humidity | 0~95% (Non-condensation) |
Physical Parameter | |
Led Indicators | PWR1: Main Power Supply Indicator |
PWR2: Redundant Power Supply Indicator | |
SYS: System Working Indicator | |
ALM: Alarm Indicator | |
Init Button | Long press ＞5s to initialise the system |
Dimensions (W*D*H) | 163mm*110mm*95.6mm |
Gross Weight | 2010g±15g |
Net Weight | 1730g±15g |
Material | Aluminum |
Installation | DIN-rail or wall mounted |
Certifications | |
Certifications | CE, FCC, RoHS |
Software Specifications | |
System State | |
System Status | Device Name |
MAC Address | |
Firmware Version | |
Hardware Version | |
System Time | |
Update Time | |
Memory Information | |
CPU Information | |
Traffic Statistics | Sent Frame Statistics |
Received Frame Statistics | |
MAC Address Table | MAC Address Table |
Sort Type | |
Port Configuration | |
Port Setting | Port State |
Port Speed | |
Duplex Mode | |
Traffic Control | |
Port Range | |
Rate Limit | Enable and Disable |
Port Range | |
Input Speed Limit | |
Output Speed Limit | |
Storm Control | Port Range |
Broadcast Storm | |
Multicast Storm | |
Unknown Unicast Storm | |
Port Isolation | Port Isolation Or Normal |
Port Range | |
PoE Setting | Power Setting |
Power Status | |
Port Status and Control | |
Ethernet Switch | |
Link Aggregation | Aggregated Load Pattern Setting |
Trunk Name | |
Aggregation Pattern Setting | |
Port Range | |
802.1Q VLAN | Port Range |
Link Type | |
PVID | |
VLAN-allowed | |
VLAN-untagged | |
802.1P QoS | Enable and Disable |
QoS Priority | |
802.1p QoS Setting | |
802.1p Mark Range | |
802.1p Priority | |
IP Service | |
Interface IP | Network Interface(VID) |
Static IP | |
IPv4 Address | |
IPv6 Address | |
DHCP Server | Client Lease Time |
Preferred DNS Address | |
Backup DNS Address | |
WINS Server | |
Network Interface(VID) | |
Default Gateway | |
Start IP Address | |
Max Client Number | |
IP Routing | |
RIP | Enable and Disable |
Protocol Type | |
Network Interface | |
OSPF | Enable and Disable |
OSPF Host ID | |
Region ID | |
Region Type | |
Network Interface | |
Routing Table | Target Network |
Next Hop Address | |
Path Consumption | |
IP Multicast | |
IGMP Snooping | Enable and Disable |
IGMP Query | |
IGMP Query Interval | |
Group Member Alive Time | |
Security | |
Static Address Lock | Enable and Disable |
MAC Address, VLAN ID, Port | |
Reliability | |
Rapid Spanning Tree | Enable and Disable |
STP Version | |
Device Priority | |
Message Sending Period | |
Message Maximum Lifetime | |
Port State Transition Delay | |
This Bridge Update Message | |
Modify Configuration | |
Fast-Ring Protect | Enable and Disable |
Fast-Ring Network Group 1 | |
Fast-Ring Network Group 2 | |
Loopback Protect | Enable and Disable |
Protect Automatic Recovery | |
Disable Loop Port Time | |
Port Range | |
Port Loop Detection | |
VRRP Setting | VRID |
VLAN Interface | |
Priority | |
Preemption Mode | |
Preemption Delay | |
Authentication Method | |
Authentication Word | |
Virtual IP | |
Alarm Management | |
Alarm Host | Power Supply |
Port Network | |
Port PoE | |
System Management | |
Port Mirroring | Enable and Disable |
Monitor Port | |
Mirror Port Range | |
Collect Data | |
SNMP | Enable and Disable |
SNMP Gateway | |
SNMP Version | |
Read-only Group Name | |
Read and Write Group Name | |
SNMP V3: User Name, Read And Write Mode | |
Identity Authentication, Verify Password, | |
Encryption Protocol, Encryption Password | |
Time | Local Time |
World Time Zone | |
Automatically Adjust Daylight Saving Time | |
Using NTP | |
NTP Sever | |
System Time | |
PC Time | |
Syslog | Enable and Disable |
Show Type | |
Information Processing | |
Management | Restore Factory Value |
System Reboot | |
Download Configuration File | |
Upload Configuration File | |
System Upgrade | |
User Setting | Access Privilege |
Username | |
Change Password | |
Dimensions：
Package：
| Switch | Mounting Accessory | Quick Installation Guide | <span style="font-size: 14px; color: rgb(102, 102, 102);" microsoft="" yahei";"="" color:#666666;font-size:14px;"="">1 pc |
